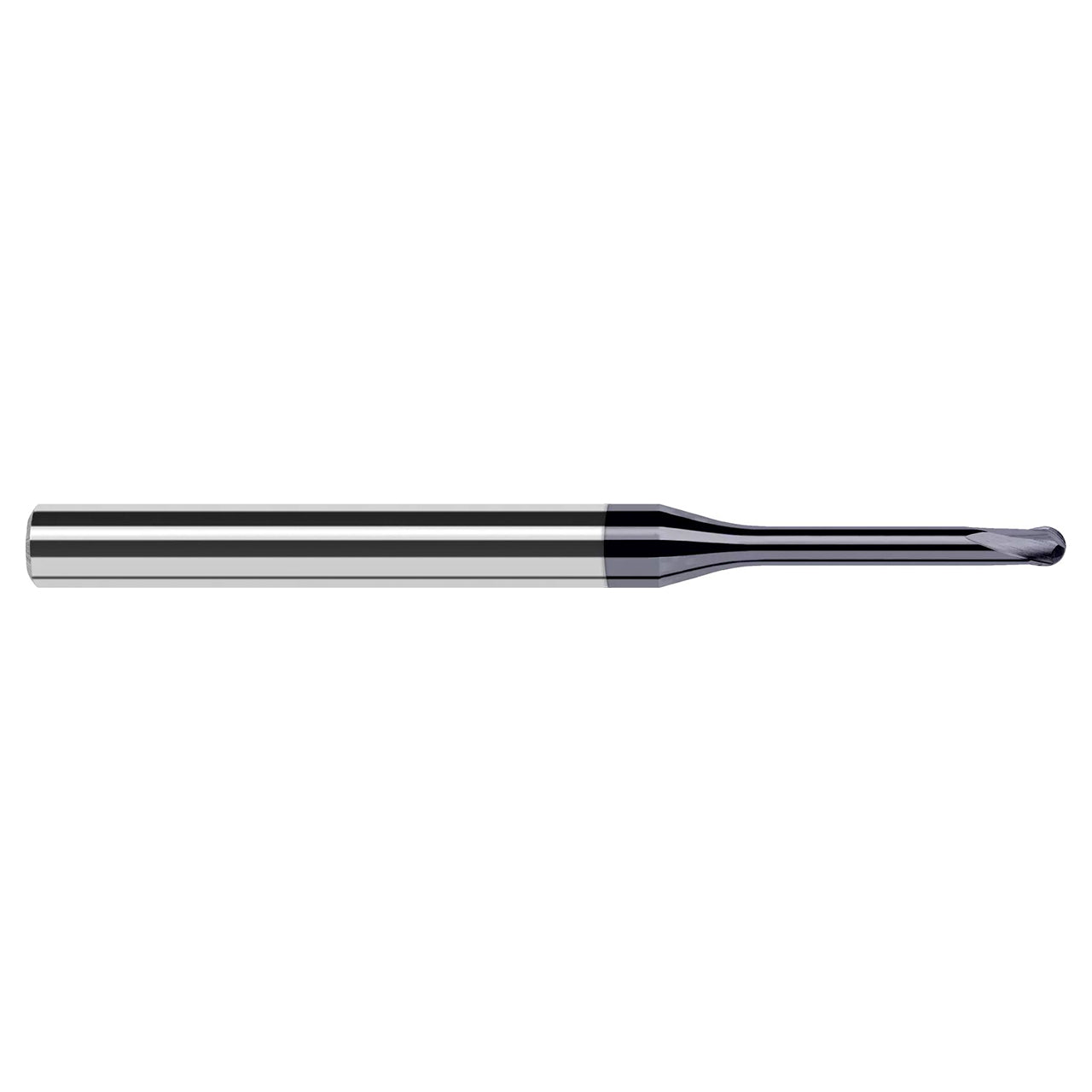

Harvey Tool offering of End Mills for Hardened Steels - Finishers - Ball is comprised of tooling CNC ground in the USA from a select carbide grade for improved edge retention.
- Increased shank diameter to maintain strength and stiffness
- h6 shank tolerance for high precision tool holders
- Select carbide grade for improved edge retention
- Reduced neck diameter to avoid heeling
- Center cutting (3 flutes to center)
- CNC ground in the USA
Product Specifications
| Tool Number | 38824-C6 |
| Cutter Diameter (Inch) | 0.3750" (3/8) |
| Neck Diameter (Inch) | 0.3670" |
| Length of Cut (Inch) | 0.3000" |
| Overall Reach (Inch) | 2.0000" (2) |
| Overall Length (Inch) | 4.0000" (4) |
| Flutes | 2 |
| LOC Multiple | 0.8x |
| Reach Multiple | 5x |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Coating | C6 |
