Harvey Tool

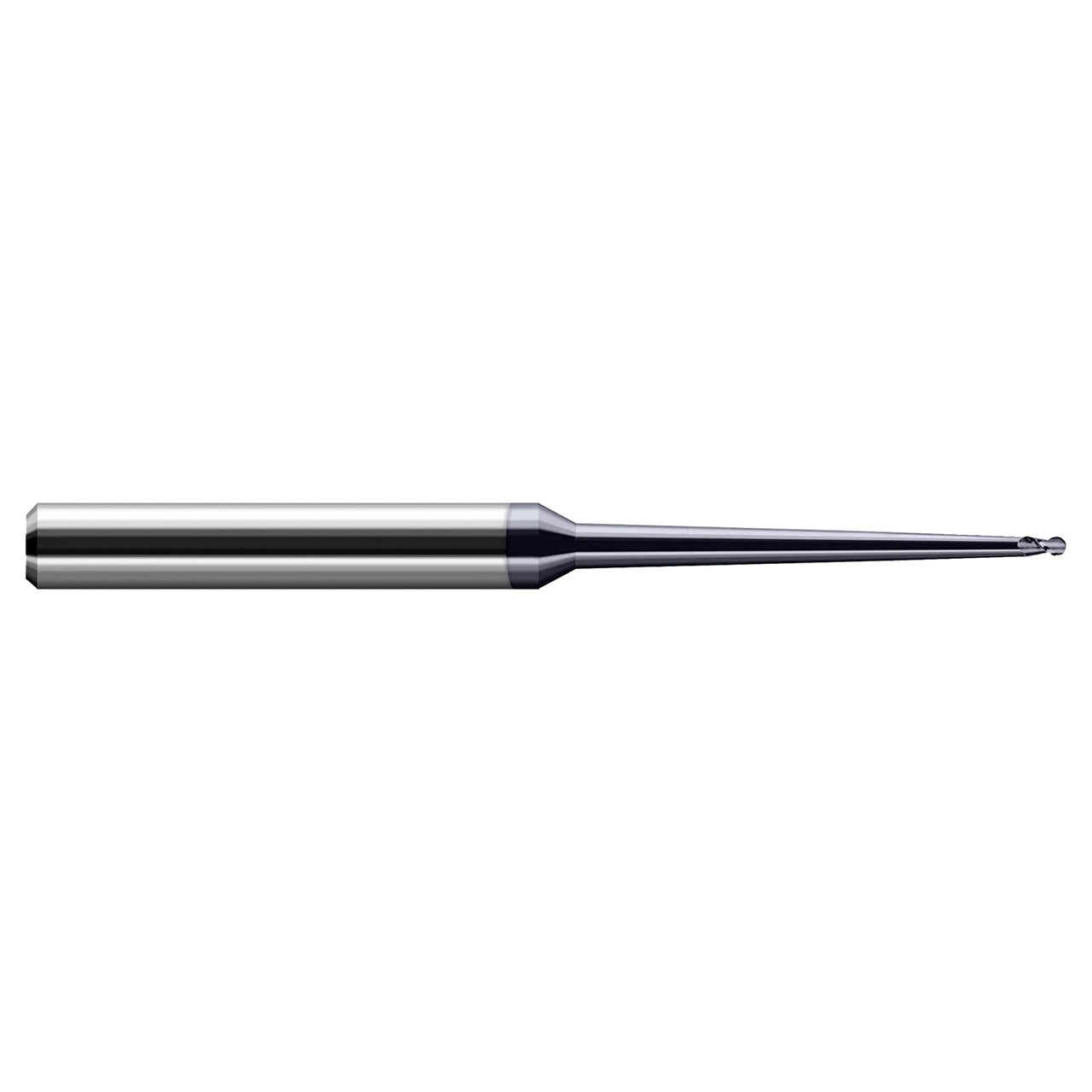

Harvey Tool 29810 | 0.0100" Diameter x 0.1250" (1/8) Shank x 0.0150" (1/64) LOC x 2.5000" (2-1/2) OAL x 2 Flutes Uncoated Carbide Miniature Tapered Ball End Mill

Harvey Tool 29810 | 0.0100" Diameter x 0.1250" (1/8) Shank x 0.0150" (1/64) LOC x 2.5000" (2-1/2) OAL x 2 Flutes Uncoated Carbide Miniature Tapered Ball End Mill

SKU: 25211149

$84.30 USD
$84.30 USD $84.30 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 14 Grams

Ver todos los detalles

Harvey Tool's Miniature End Mills - Ball - Tapered Reach (Clearance Cutters) are designed for deep cavity profiling

  • h6 shank tolerance for high precision tool holders
  • Designed for deep cavity profiling
  • CNC ground in the USA
  • Center cutting
  • Solid carbide

Product Specifications
Tool Number 29810
Cutter Diameter (Inch) 0.0100"
Neck Diameter (Inch) 0.0320"
Minor Diameter (Inch) 0.0080" (.2 mm)
Length of Cut (Inch) 0.0150" (1/64)
Neck Length (Inch) 0.0100"
Overall Reach (Inch) 0.5000" (1/2)
Overall Length (Inch) 2.5000" (2-1/2)
Neck Angle 2
Flutes 2
LOC Multiple 1.5x
Shank Diameter (Inch) 0.1250" (1/8)
Coating Uncoated
