Harvey Tool

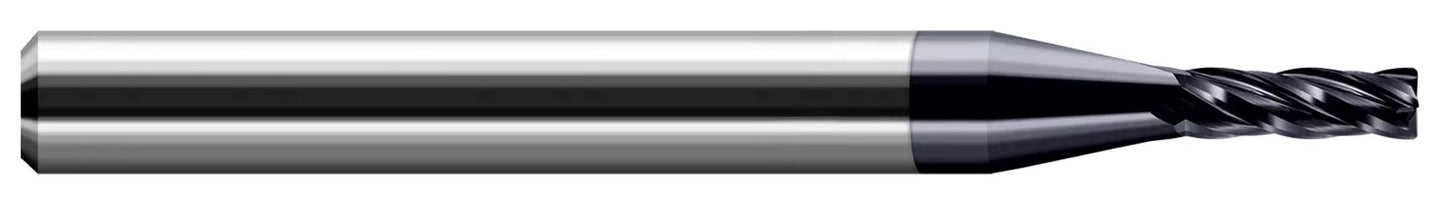

Harvey Tool 28693-C4 | 3/32" Diameter x 1/8" Shank x 0.2790" LOC x 1-1/2" OAL 0.0300" Radius 4 Flute Amorphous Diamond Coated Carbide Corner Radius End Mill

Harvey Tool 28693-C4 | 3/32" Diameter x 1/8" Shank x 0.2790" LOC x 1-1/2" OAL 0.0300" Radius 4 Flute Amorphous Diamond Coated Carbide Corner Radius End Mill

SKU: 25174691

$35.90 USD
$35.90 USD $35.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 5 Grams

En existencias

Free Shipping on Orders Over $75

Ver todos los detalles

The corner radius profile featured in this collection of Harvey Tool Miniature End Mills - Corner Radius - Stub & Standard adds strength to the tool.

  • Corner radius for improved strength
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.0930" (3/32)
Length of Cut (Inch) 0.2790"
Overall Length (Inch) 1.5000" (1-1/2)
Number of Flutes 4
Corner Radius 0.0300"
LOC Multiple 3x
Shank Diameter (Inch) 0.1250" (1/8)
Coating/Finish C4
