Harvey Tool

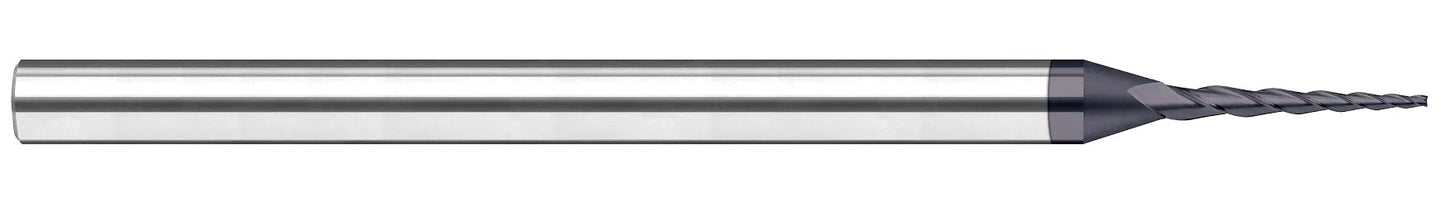

Harvey Tool 27193-C6 | 5 Degree Taper Angle per Side 3/32" Diameter x 1/4" Shank x 0.9300" LOC x 4" OAL 3 Flute AlTiN Nano Coated Carbide Tapered End Mill

Harvey Tool 27193-C6 | 5 Degree Taper Angle per Side 3/32" Diameter x 1/4" Shank x 0.9300" LOC x 4" OAL 3 Flute AlTiN Nano Coated Carbide Tapered End Mill

SKU: 25186914

$90.90 USD
$90.90 USD $90.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 36 Grams

Ver todos los detalles

Miniature End Mills - Tapered - Square are stocked in fifteen angles per side. In addition, this vast offering includes angle per side.

  • Length of cut up to 10x end diameter
  • Long length design for deep cavity machining
  • 3 flutes
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.0930" (3/32)
Length of Cut (Inch) 0.9300"
Overall Length (Inch) 4.0000" (4)
Number of Flutes 3
Angle per Side 5
Included Angle 10
LOC Multiple 10x
Shank Diameter (Inch) 0.2500" (1/4)
Coating/Finish C6
