Harvey Tool

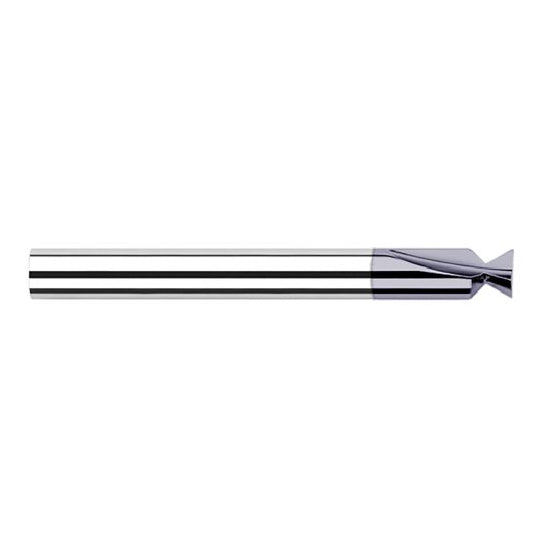

Harvey Tool 23935-C3 | 0.2310" Diameter 0.0620" Tip Radius 48 Degree Included Angle AlTiN Coated Solid Carbide Specialty Dovetail Cutter

Harvey Tool 23935-C3 | 0.2310" Diameter 0.0620" Tip Radius 48 Degree Included Angle AlTiN Coated Solid Carbide Specialty Dovetail Cutter

SKU: 25107594

Precio habitual $115.50 USD
Precio habitual $115.50 USD Precio de oferta $115.50 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 18 Grams

Ver todos los detalles
Product Specifications
Mill Diameter (Decimal Inch) 0.2310"
Neck Diameter (Decimal Inch) 0.0860"
Length Of Cut (Decimal Inch) 0.2380"
Overall Length (Decimal Inch) 2.0000"
Overall Length (Inch) 2"
Corner Radius (Decimal Inch) 0.0620"
Corner Radius (Inch) 1/16"
Included Angle 48 Degree
Number of Flutes 2
O Ring Cross-Section (Decimal Inch) 0.2750"
Shank Diameter (Decimal Inch) 0.2500"
Shank Diameter (Inch) 1/4"
Metric No
Coating AlTiN
