Harvey Tool

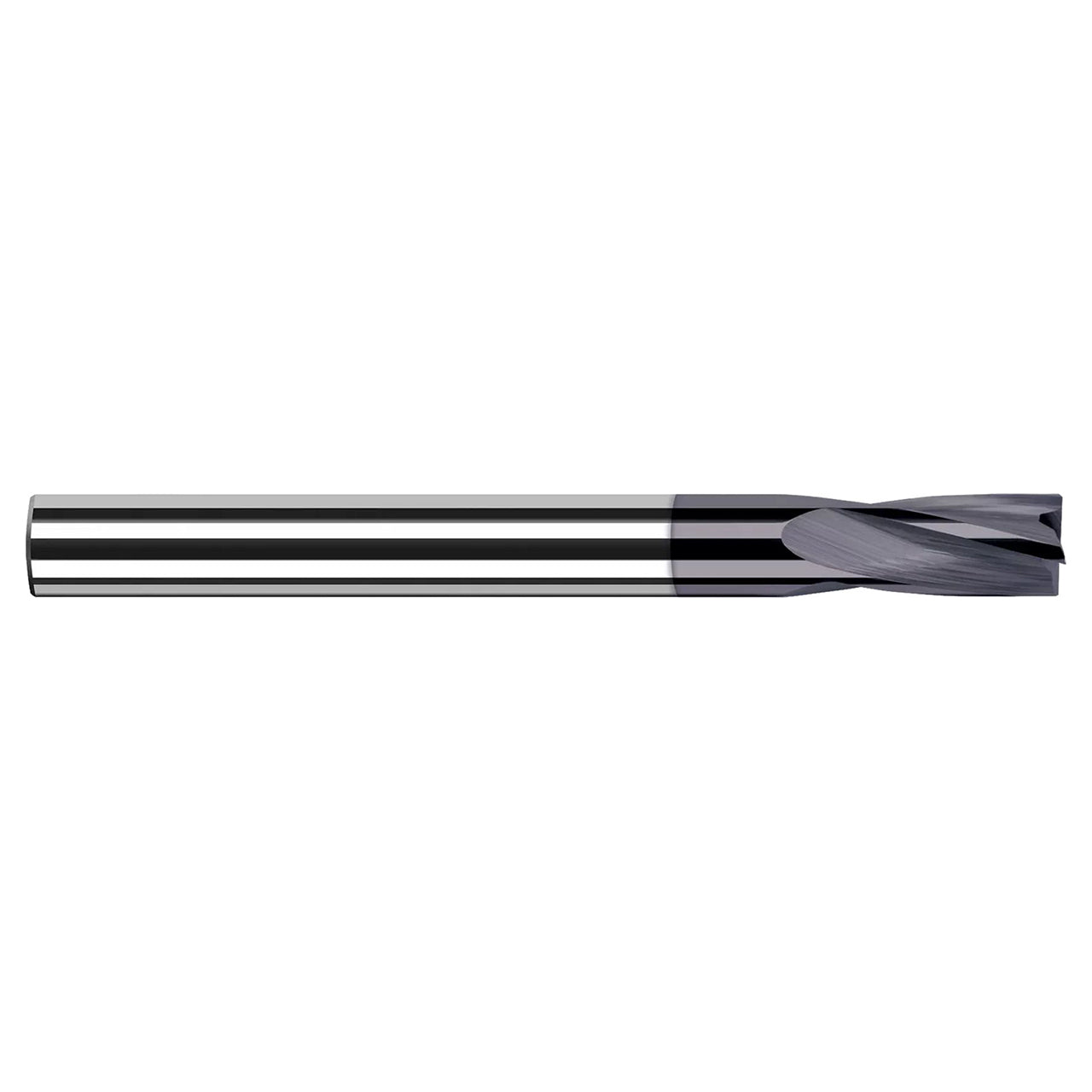

Harvey Tool 23420-C8 | 0.3125" (5/16) Diameter x 0.3125" (5/16) Shank x 2.5000" (2-1/2) OAL 4 Flutes TiB2 Coated Carbide Flat Bottom Counterbore

Harvey Tool 23420-C8 | 0.3125" (5/16) Diameter x 0.3125" (5/16) Shank x 2.5000" (2-1/2) OAL 4 Flutes TiB2 Coated Carbide Flat Bottom Counterbore

SKU: 25232470

$68.20 USD
$68.20 USD $68.20 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 36 Grams

Ver todos los detalles

This Harvey Tool product line of Counterbores - Flat Bottom - Long Reach features tooling that can be used for flat bottom reaming or straightening misaligned holes.

  • Flat Bottom (No Dish) design allows spot facing or counterboring on irregular surfaces
  • Can be used for flat bottom reaming or straightening misaligned holes
  • Ground with full cylidrical margin (not side cutting)
  • Undersized neck to avoid heeling
  • CNC ground in the USA
  • Center cutting
  • Solid carbide
  • 15 Degree Helix
  • 4 Flutes

Product Specifications
Tool Number 23420-C8
Cutter Diameter (Inch) 0.3125" (5/16)
Flute Length (Inch) 1.0000" (1)
Overall Length (Inch) 2.5000" (2-1/2)
Flutes 4
Shank Diameter (Inch) 0.3125" (5/16)
Coating C8
