Harvey Tool

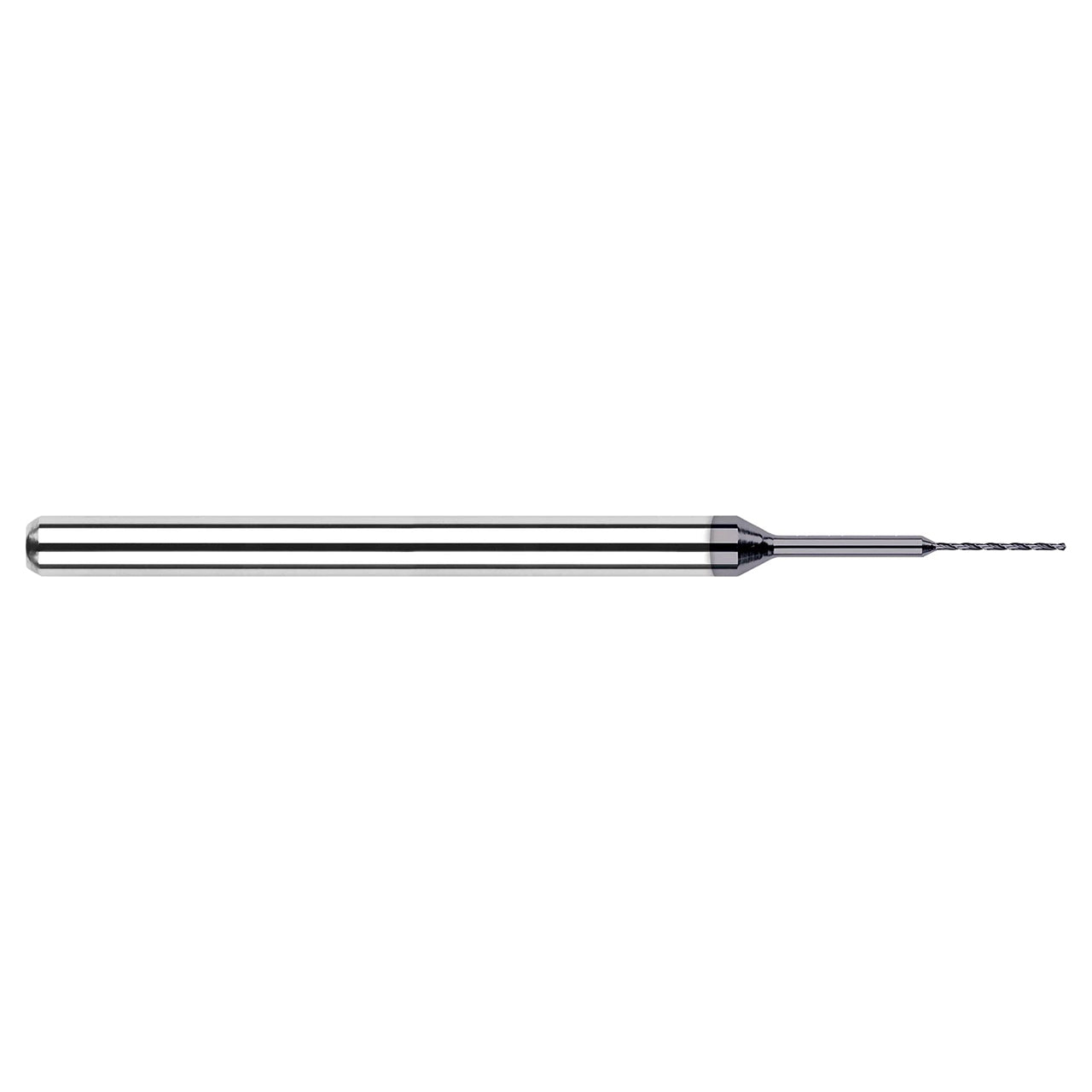

Harvey Tool 20130-C4 | 0.2300" Flute Length x 0.1250" (1/8) Shank x 1.5000" (1-1/2) OAL 2 Flutes Amorphous Diamond Coated Carbide Miniature Drill

Harvey Tool 20130-C4 | 0.2300" Flute Length x 0.1250" (1/8) Shank x 1.5000" (1-1/2) OAL 2 Flutes Amorphous Diamond Coated Carbide Miniature Drill

SKU: 10252803

$33.60 USD
$33.60 USD $33.60 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 5 Grams

Ver todos los detalles
  • CNC ground in Germany
  • 130 Degree drill point
  • Solid carbide

Product Specifications
Tool Number 20130-C4
Drill Diameter (Inch) 0.0130"
Neck Diameter (Inch) 0.0280" (.7 mm)
Flute Length (Inch) 0.2300"
Overall Reach (Inch) 0.4130"
Overall Length (Inch) 1.5000" (1-1/2)
Point Angle 130
Flutes 2
Shank Diameter (Inch) 0.1250" (1/8)
Coating C4
Warning:

This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
