Harvey Tool

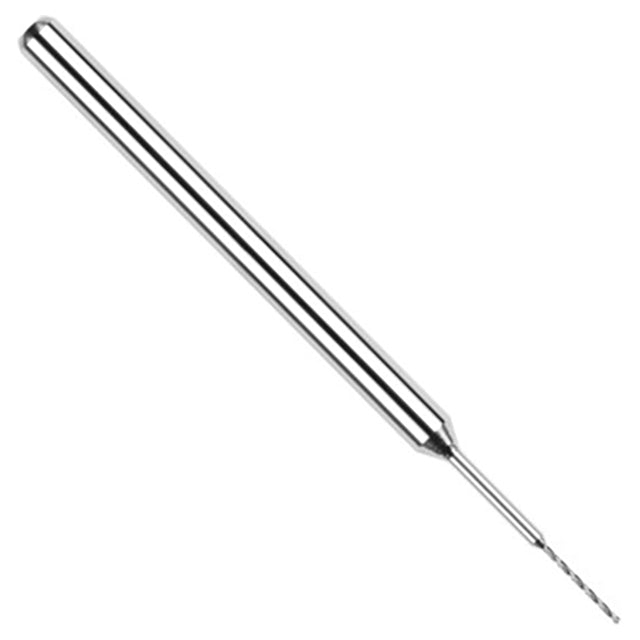

Harvey Tool 20110 | 0.0110" Diameter x 0.1600" Flute Length x 1/8" Reduced Shank x 1-1/2" OAL 130 Degree Drill Point Angle Uncoated Solid Carbide Micro Drill Bit

Harvey Tool 20110 | 0.0110" Diameter x 0.1600" Flute Length x 1/8" Reduced Shank x 1-1/2" OAL 130 Degree Drill Point Angle Uncoated Solid Carbide Micro Drill Bit

SKU: 10101276

$20.80 USD
$20.80 USD $20.80 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 5 Grams

Ver todos los detalles
Features
  • Miniature drills down to .002"
  • For tools .020"" and smaller, there is an intermediate neck diameter as pictured above
  • 130 Degree drill point
  • Solid carbide
  • CNC ground in Germany
Product Specifications
Drill Diameter (Decimal Inch) 0.0110"
Neck Diameter (Decimal Inch) 0.0280"
Point Angle 130 Degree
Flute Length (Decimal Inch) 0.1600"
Shank Diameter (Decimal Inch) 0.1250"
Shank Diameter (Inch) 1/8"
Overall Reach (Decimal Inch) 0.4130"
Overall Length (Decimal Inch) 1.5000"
Overall Length (Inch) 1-1/2"
Finish/Coating Uncoated
Through Coolant No
Material Solid Carbide
Number of Flutes 2
Single or Double Single
