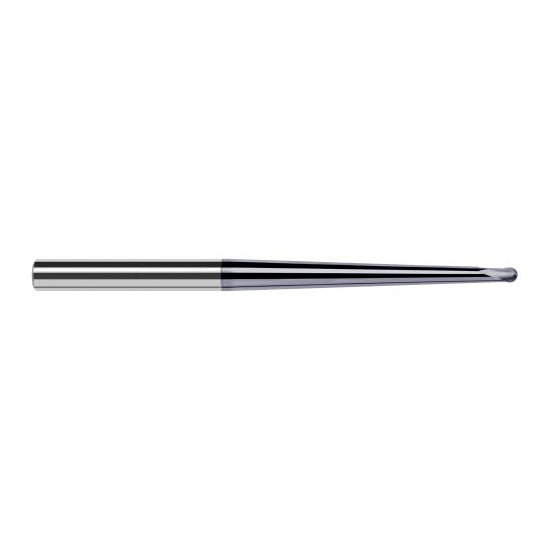

Product Specifications
| Milling Diameter (Inch) | 3/64" |
| Milling Diameter (Decimal Inch) | 0.0470" |
| Number of Flutes | 2 |
| Length Of Cut (Decimal Inch) | 0.0380" |
| Overall Reach (Decimal Inch) | 0.8390" |
| Finish/Coating | AlTiN Nano |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Single or Double End | Single |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.0000" |
| Center Cutting (Yes/No) | Yes |
| Neck Diameter (Decimal Inch) | 0.0840" |
| Tapered Reach (Decimal Inch) | 0.7500" |
| Tapered Reach (Inch) | 3/4" |
| Neck Angle | 1.5 Degrees |
| LOC Multiple | 0.8x |
| Type | I |
| Metric (Yes/No) | No |
