Harvey Tool

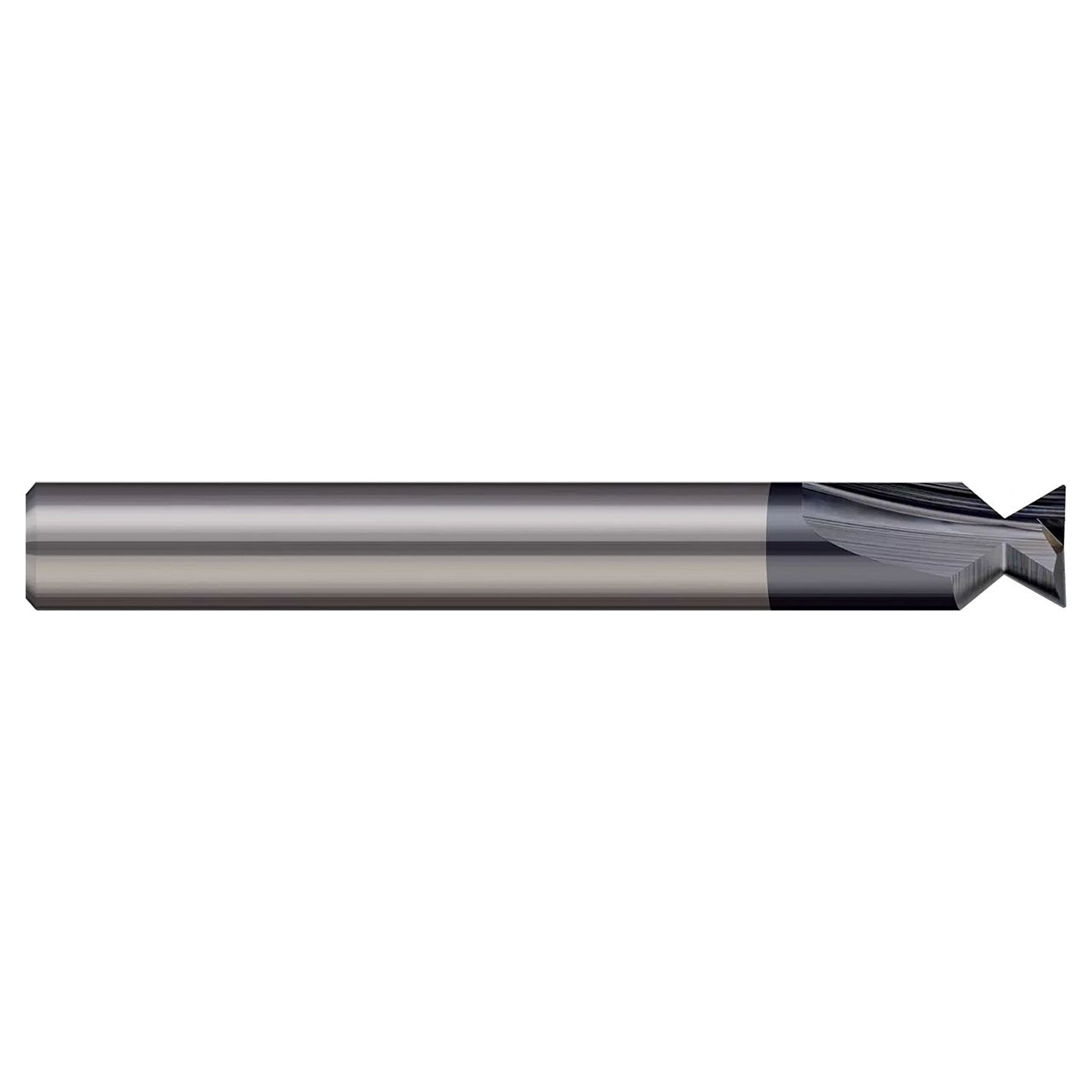

Harvey Tool 16796 | 0.1180" (3 mm) Diameter x 0.0590" LOC x 0.1250" (1/8) Shank x 60 Degree Uncoated Carbide Tip Radius Dovetail Cutters

Harvey Tool 16796 | 0.1180" (3 mm) Diameter x 0.0590" LOC x 0.1250" (1/8) Shank x 60 Degree Uncoated Carbide Tip Radius Dovetail Cutters

SKU: 25211121

$89.90 USD
$89.90 USD $89.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 9 Grams

Ver todos los detalles
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number 16796
Cutter Diameter (Inch) 0.1180" (3 mm)
Neck Diameter (Inch) 0.0650"
Length of Cut (Inch) 0.0590"
Overall Length (Inch) 1.5000" (1-1/2)
Corner Radius (Inch) 0.0100"
Angle per Side 30
Included Angle 60
Flutes 2
Shank Diameter (Inch) 0.1250" (1/8)
Coating Uncoated
