Harvey Tool

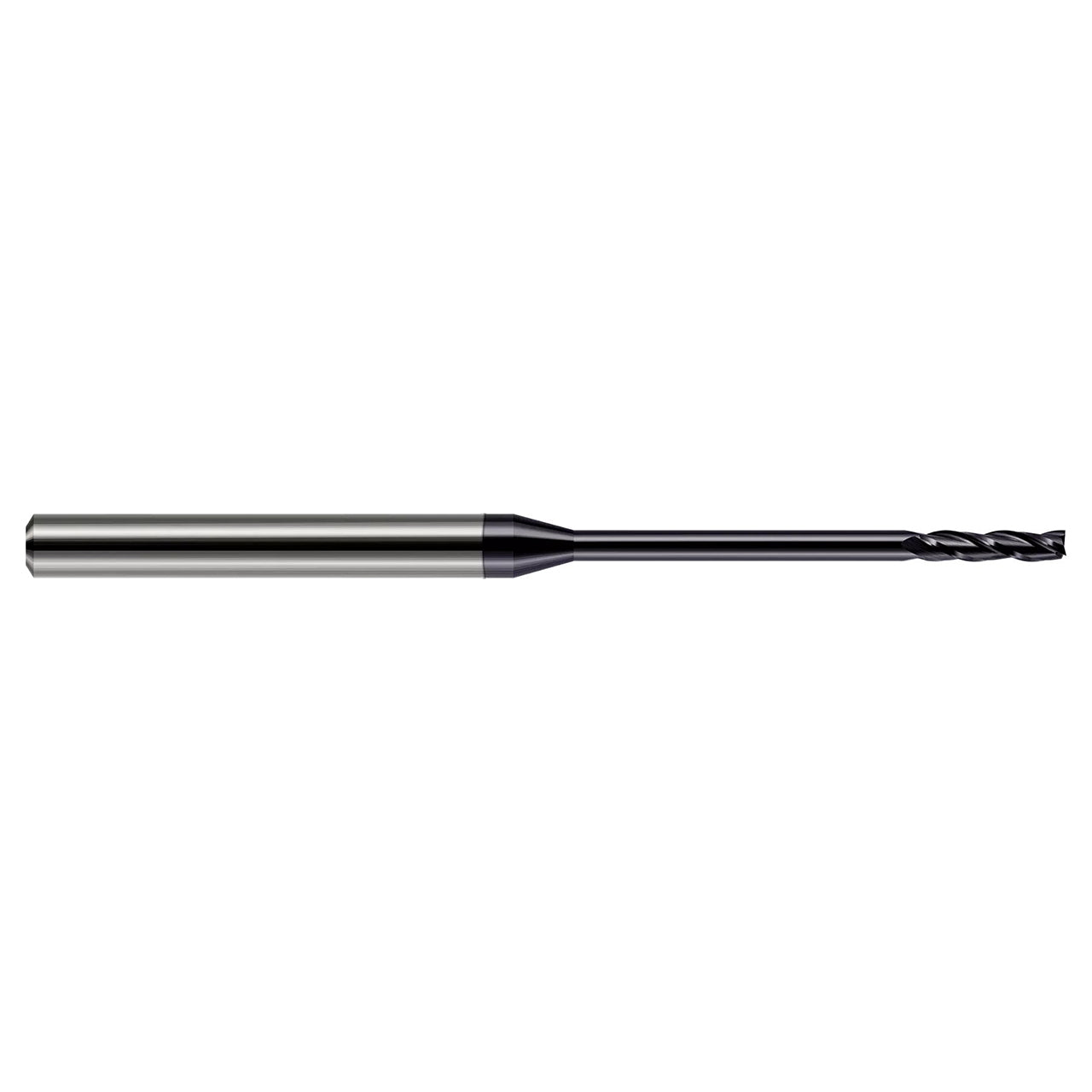

Harvey Tool 13612-C3 | 0.0120" (0.3 mm) Diameter x 0.1250" (1/8) Shank x 0.0600" LOC x 2.5000" (2-1/2) OAL x 3 Flutes AlTiN Coated Carbide Square End Mill

Harvey Tool 13612-C3 | 0.0120" (0.3 mm) Diameter x 0.1250" (1/8) Shank x 0.0600" LOC x 2.5000" (2-1/2) OAL x 3 Flutes AlTiN Coated Carbide Square End Mill

SKU: 25211109

$61.30 USD
$61.30 USD $61.30 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 9 Grams

Bajas existencias: quedan 9

Free Shipping on Orders Over $75

Ver todos los detalles

Optimized for deep cavity and deep pocket milling applications, Miniature End Mills - Square - Long Reach, Long Flute feature a reduced neck diameter to avoid heeling, center cutting geometry, and solid carbide construction.

  • Long length design for deep cavities
  • Long flutes for deep pocket milling
  • CNC ground in the USA
  • Center cutting
  • Solid carbide

Product Specifications
Tool Number 13612-C3
Cutter Diameter (Inch) 0.0120" (.3 mm)
Neck Diameter (Inch) 0.0112"
Length of Cut (Inch) 0.0600"
Overall Reach (Inch) 0.1200"
Overall Length (Inch) 2.5000" (2-1/2)
Flutes 3
LOC Multiple 5x
Reach Multiple 10x
Shank Diameter (Inch) 0.1250" (1/8)
Coating C3
