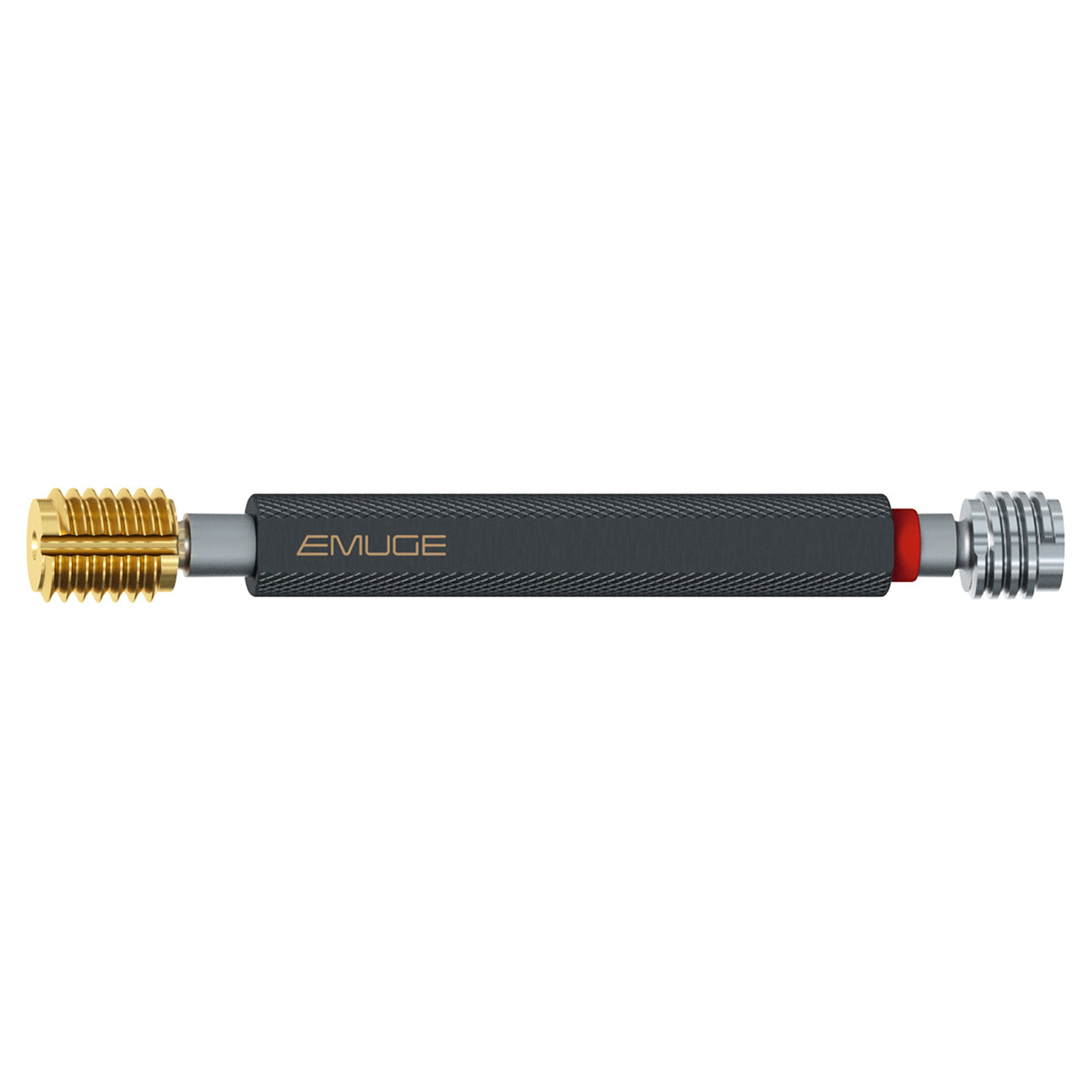

Features:
- Rugged tool steel construction with knurled handle.
- Recessed minor thread profile for safe No-Go functionality
- Go plug gage with dirt groove (from Ø 55 mm) and removed incomplete threads for reliable gaging
- Short form Certificate of Accuracy is furnished free with each gage/ NIST compliant
Product Specifications
| Manufacturer Part Number | L0105100.0390 |
| Thread Size | M 18x1.5 |
| Thread Diameter Size | M 18 |
| Dimensional Standard | NIST |
| Flute Direction | Right Hand |
| End Mill - End Style | Go/No-Go |
| Thread Standard | MF |
| Class of Fit | 6H |
| Cutting Edge Material | Steel |
| Coating | TiN |
| Product Type | Plug Thread Gage |
