Features:

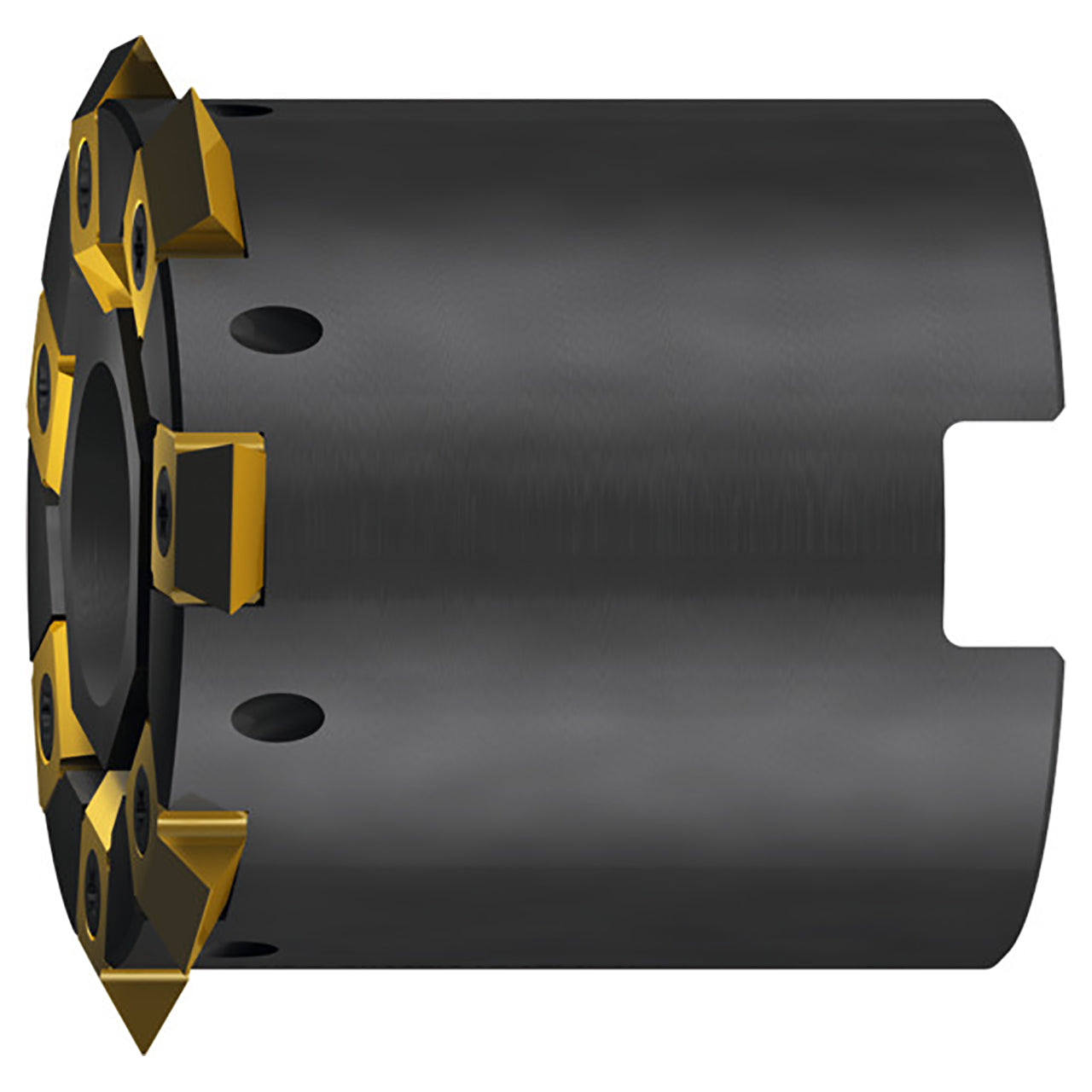

- Gigant- Modular indexable insert body that is interchangeable for large diameter threading
- Circular thread milling bodies for 4-tooth indexable inserts Gr14
- Radial coolant channels
- Interchangeable body design with high insert count for smoother cutting action
Product Specifications
| Manufacturer Part Number | GZ352004 |
| Cutting Diameter (mm) | 71.50mm |
| Nose Diameter (mm) | 60.00mm |
| Thread Diameter Size | #14 |
| Overall Length (mm) | 50.00mm |
| Projection Length (mm) | 47.00mm |
| Shank Standard | DIN 138 |
| Coolant Supply Property | Internal |
| Coolant Fed | Radial |
| Cutting Edge Material | Steel |
| Coating | Bright |
| Tool Type | Gigant Modular Body |
| Application | Indexable Thread Milling |
| Product Type | Thread Mill Insert |
