Features:

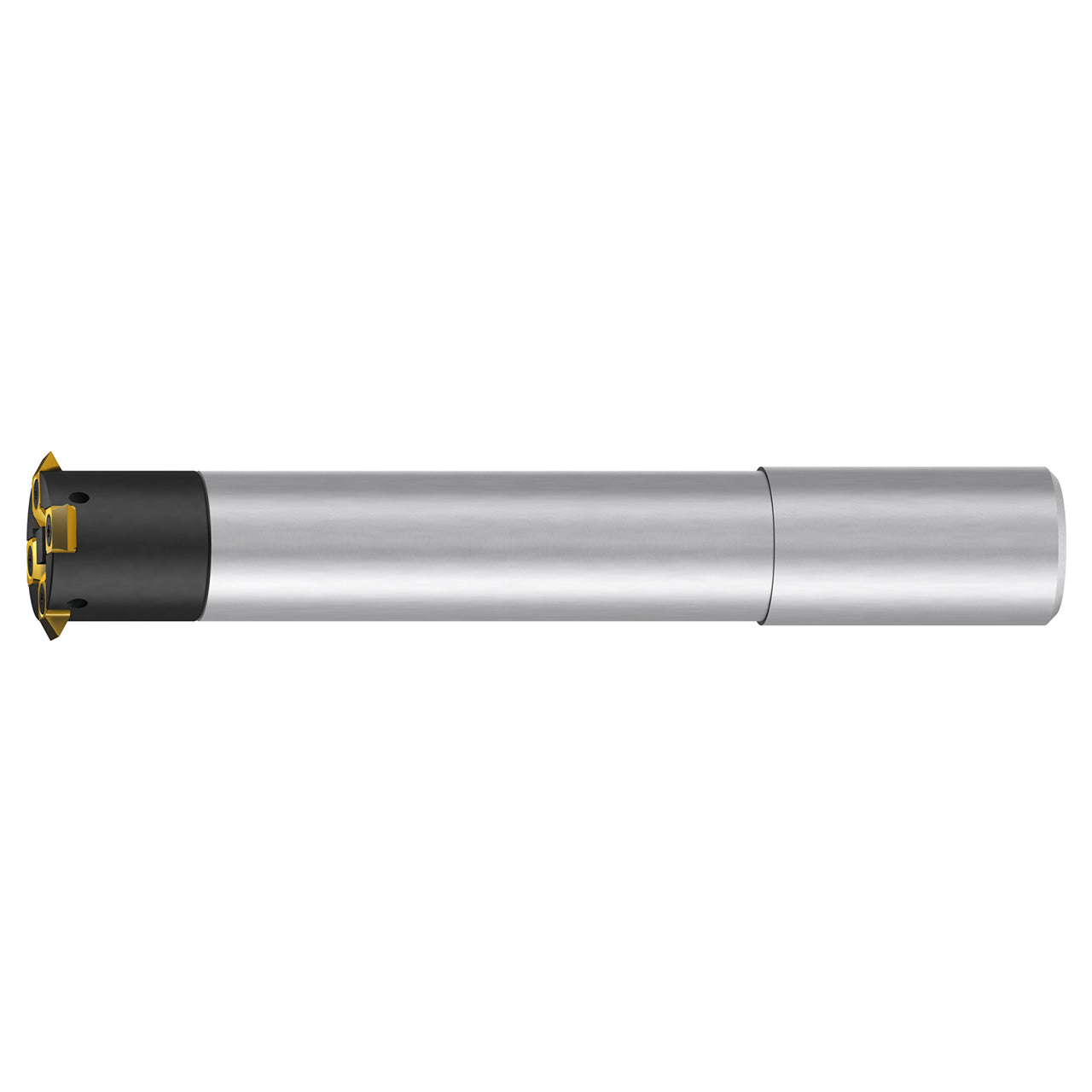

- Gigant- Soft Run indexable insert body for fast large diameter threading
- Circular thread milling bodies for 2-tooth indexable inserts Gr10
- Radial coolant channels
- Carbide body design for maximum stability and smoother cutting action
Product Specifications
| Manufacturer Part Number | GZ34A000 |
| Cutting Diameter (mm) | 20.50mm |
| Thread Diameter Size | #10 |
| Overall Length (mm) | 115.00mm |
| Flute Length (mm) | 65.00mm |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Coolant Supply Property | Internal |
| Coolant Fed | Radial |
| Cutting Edge Material | Steel |
| Coating | Bright |
| Tool Type | Gigant Soft Run Body |
| Application | Indexable Thread Milling |
| Product Type | Thread Mill Insert |
