Features:

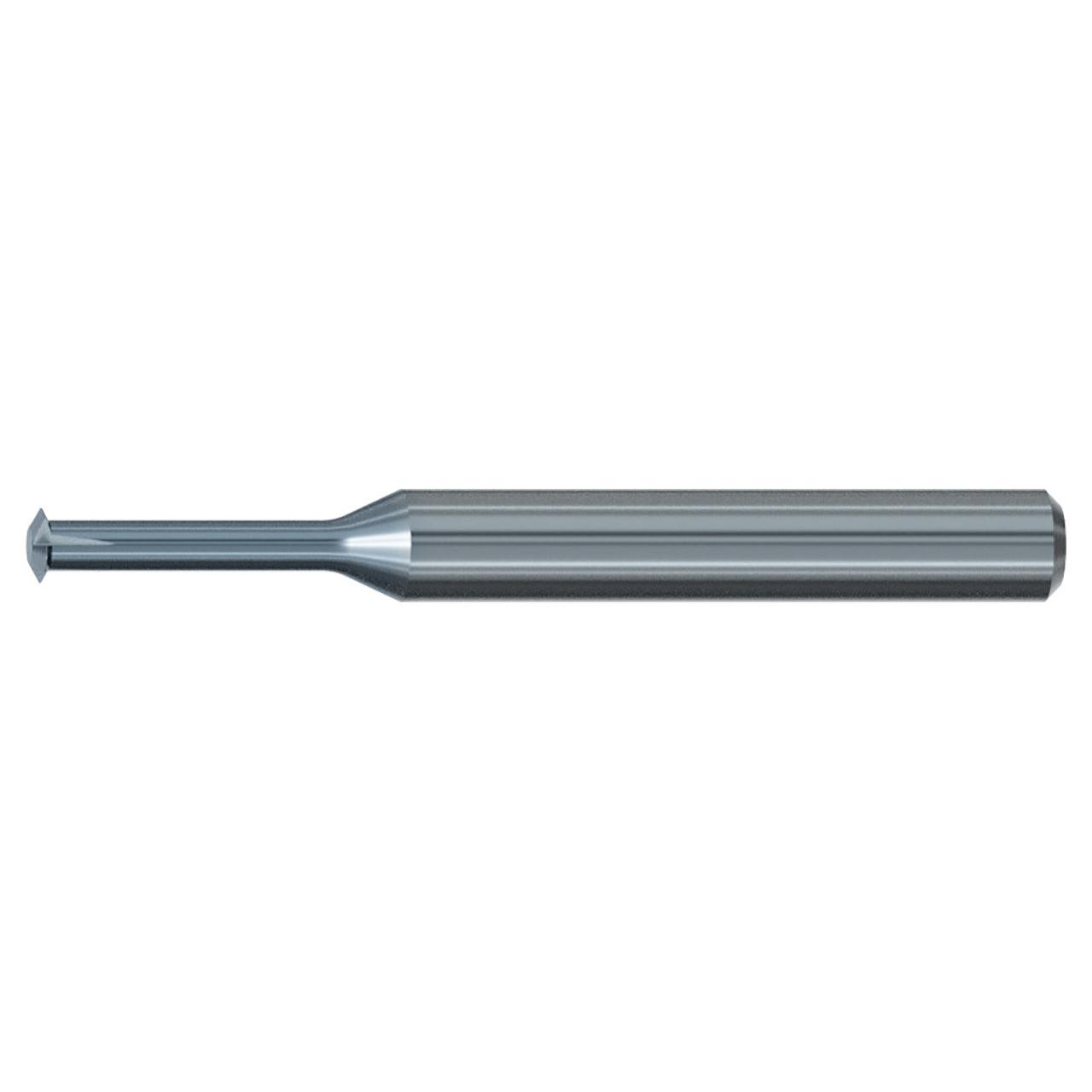

- Single plane solid carbide circular thread mill
- One tool can thread more than one thread size and pitch
- Full bottoming threads to within 1 pitch
- Eliminate the need for multiple tool holder pockets
Product Specifications
| Manufacturer Part Number | GFS83706.5043 |
| Cutting Diameter (Decimal Inch) | 0.207" |
| Thread Size | 1/4"-28" |
| Thread Diameter Size | 1/4 |
| Thread Standard | UNF |
| Thread per Inch (TPI) | 28 TPI |
| Overall Length (Decimal Inch) | 2.375" |
| Flute Length (Decimal Inch) | 0.392" |
| Dimensional Standards | ASME B1.1 |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Weldon Flat - HB |
| Shank Standard | ASME B94.19 |
| Flute Direction | Right Hand |
| Group Length | 3xD |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 4 |
| Cutting Edge Material | Carbide |
| Coating | TICN |
| Tool Type | THREADS-ALL |
| Application | Thread Milling |
| Product Type | Thread Mill |
