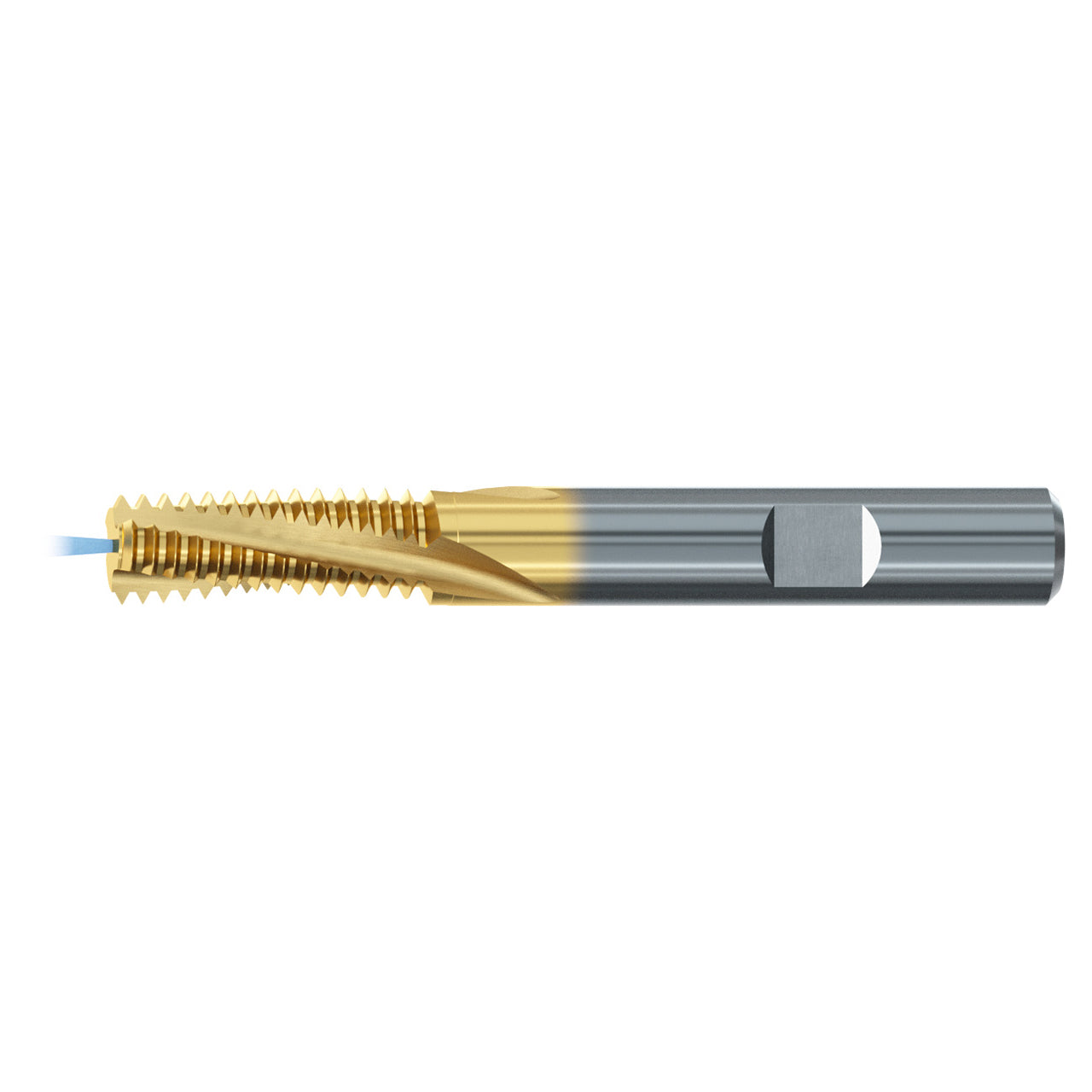

Features:
- For economical production of internal threads in a wide range of materials
- Optimized coolant fed cutting geometry that works well in a job shop enviroment with multiple materials
Product Specifications
| Cutter Diameter (mm) | 0.203" |
| Pitch | 28 |
| Size | 1/4" |
| Thread Standard | UNF |
| Applicable Material | Universal |
| Application | Full Profile |
| Type | MULTI-THREAD MILL |
| Length Group | 2 x D |
| Coolant Fed | Axial |
| Coating/Finish | TIN-T21 |
| Material | Carbide |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 15 Degree |
| Shank Diameter (mm) | 1/4" |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 2-1/2" |
| Flute Length (mm) | 0.517" |
| Flute Direction | Right Hand, Left Hand |
