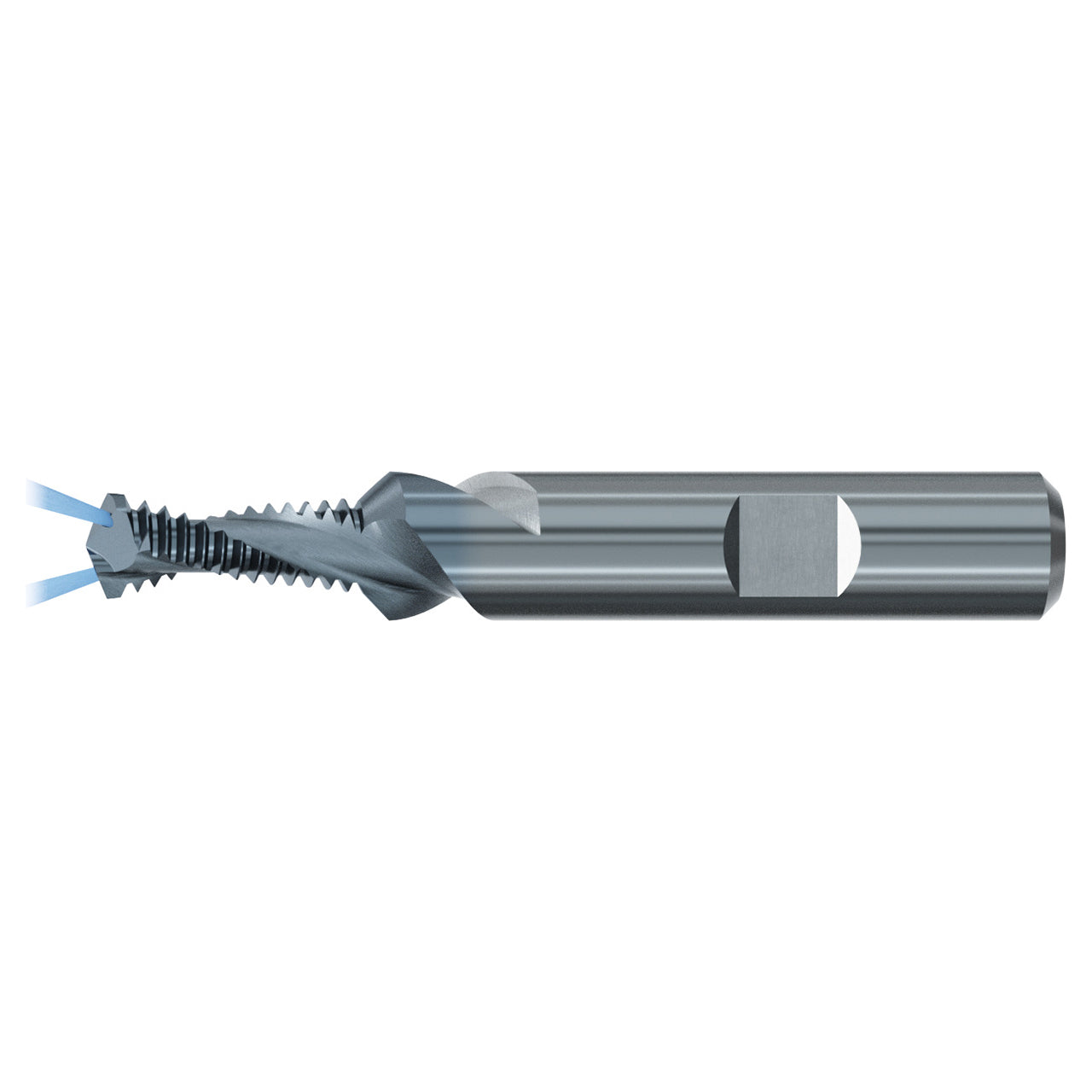

Features:
- Combination drill, countersink & thread mill Coolant fed design
- No pre-drilled tap hole necessary
- Tool for a specific dimension with corrected thread profile
- Combine three operations into one tool
Product Specifications
| Manufacturer Part Number | GF422206.0302 |
| Cutting Diameter (mm) | 10.40mm |
| Thread Size | M 12x1.25 |
| Thread Diameter Size | M 12 |
| Thread Standard | MF |
| Thread Pitch (mm) | 1.25mm |
| Overall Length (mm) | 79.00mm |
| Flute Length (mm) | 15.11mm |
| Dimensional Standards | DIN 13 |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Weldon Flat - HB |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | 1.5xD |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 2 |
| Point Angle (Degree) | 140 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Cutting Edge Material | Carbide |
| Coating | TICN |
| Tool Type | THRILLER |
| Application | Drill / Thread / Chamfer |
| Product Type | Helical Flute Thread Mill |
