Features:

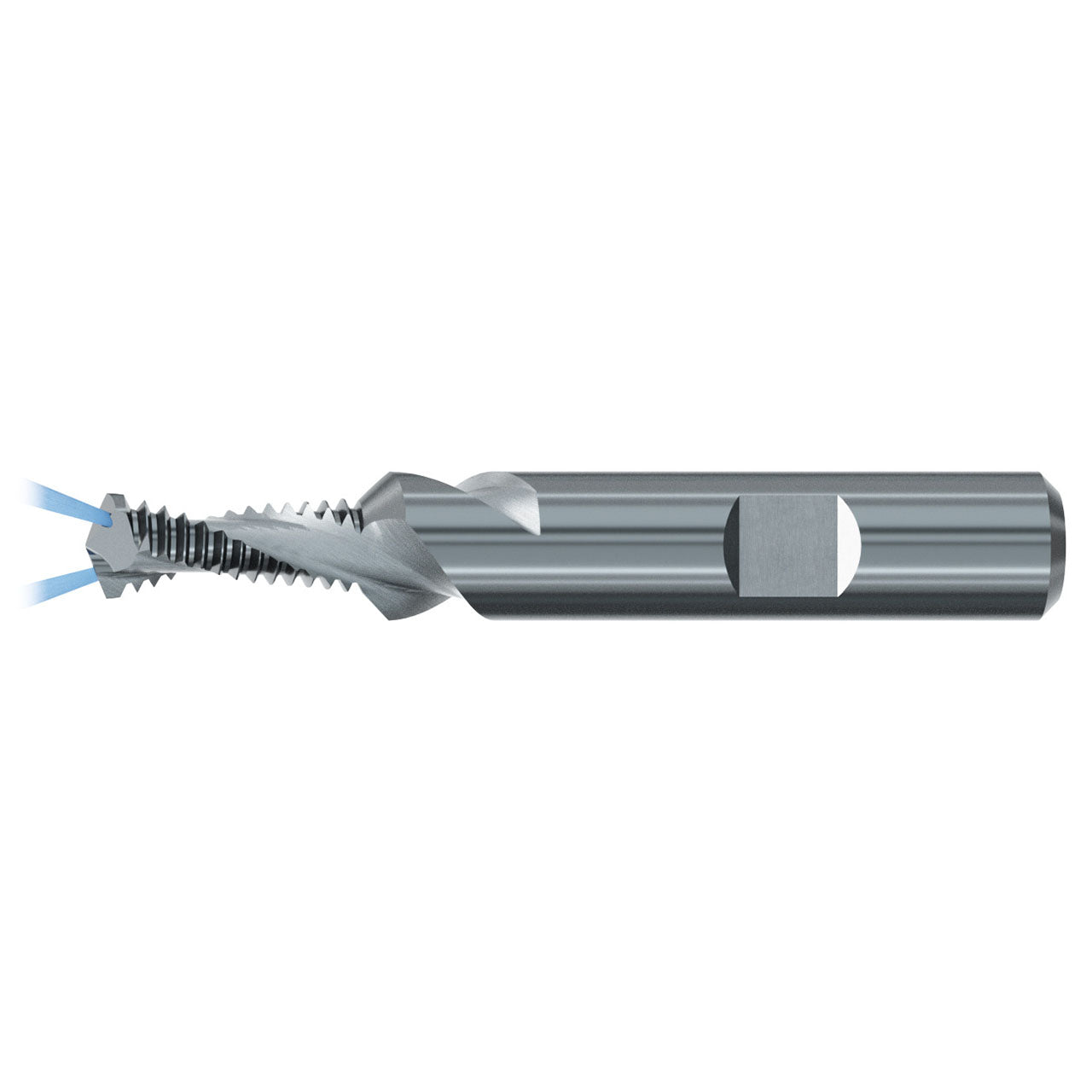

- Combination drill, countersink & thread mill. Coolant fed design.
- No pre-drilled tap hole necessary
- Tool for a specific dimension with corrected thread profile
- Combine three operations into one tool
Product Specifications
| Manufacturer Part Number | GF422201.0302 |
| Cutting Diameter (mm) | 10.40mm |
| Thread Size | M 12x1.25 |
| Thread Diameter Size | M 12 |
| Overall Length (mm) | 79.00mm |
| Flute Length (mm) | 15.11mm |
| Length Group | 1.5xD |
| Number of Flutes | 2 |
| Flute Helix Angle (Degree) | 30 Degree |
| Shank Tolerance | h6 |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Point Angle (Degree) | 140 Degree |
| Thread Standard | MF |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Cutting Edge Material | Carbide |
| Coating | Bright |
| Product Type | Thread Mill |
