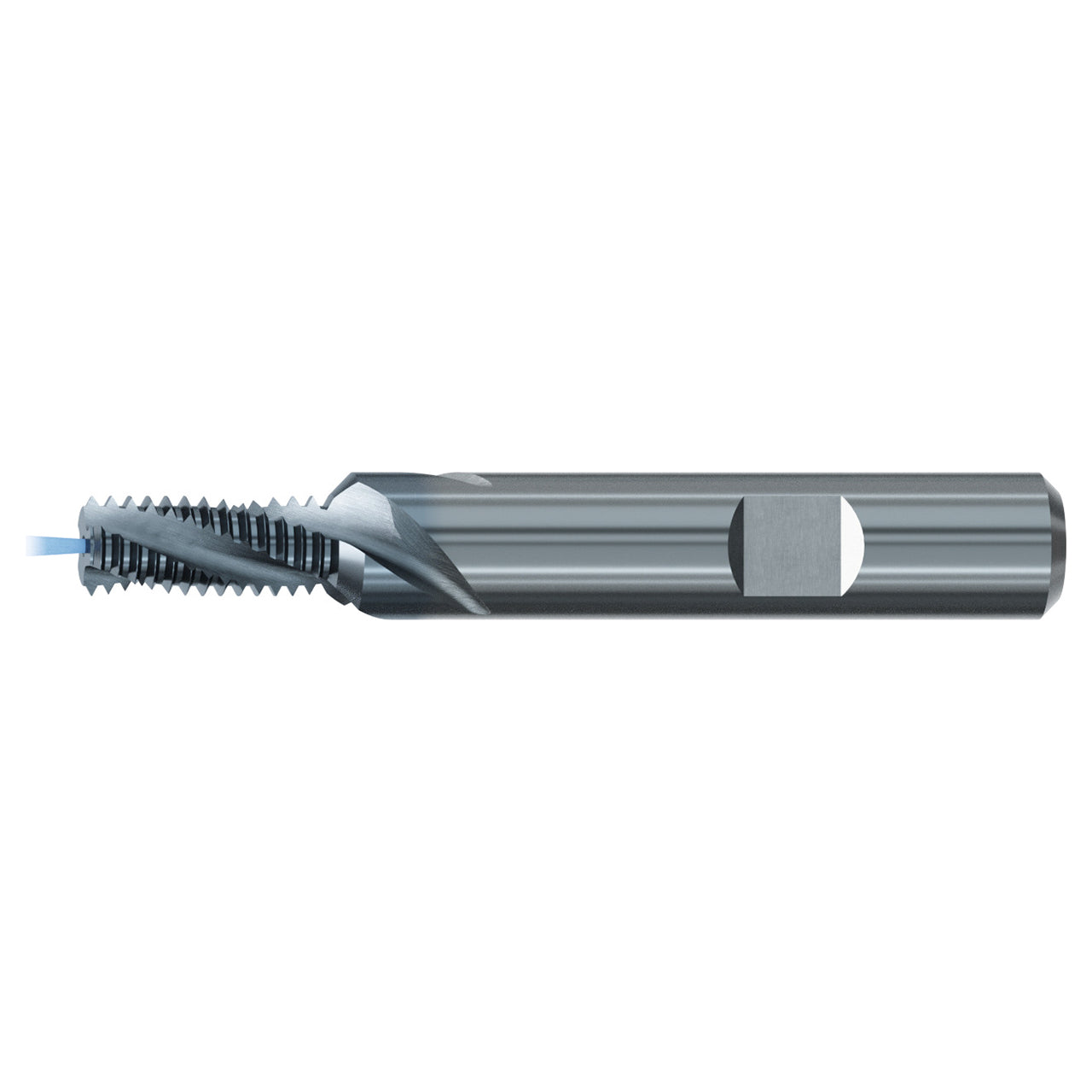

Features:
- Combination countersink & thread mill
- Axial coolant fed channel for enhanced chip removal rates
- This tool is for a specific pitch with corrected thread profile
- Pre-drilled hole is required
Product Specifications
| Manufacturer Part Number | GF322106.5016 |
| Cutting Diameter (mm) | 16.00mm |
| Thread Size | 3/4"-10" |
| Thread Diameter Size | 3/4 |
| Thread Standard | UNC |
| Thread per Inch (TPI) | 10 TPI |
| Overall Length (mm) | 110.00mm |
| Flute Length (mm) | 29.30mm |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Weldon Flat - HB |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | 1.5xD |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 5 |
| Flute Helix Angle (Degree) | 30 Degree |
| Cutting Edge Material | Carbide |
| Coating | TICN |
| Tool Type | SHUR-THREAD |
| Application | Thread Milling |
| Product Type | Thread Mill |
