Features:

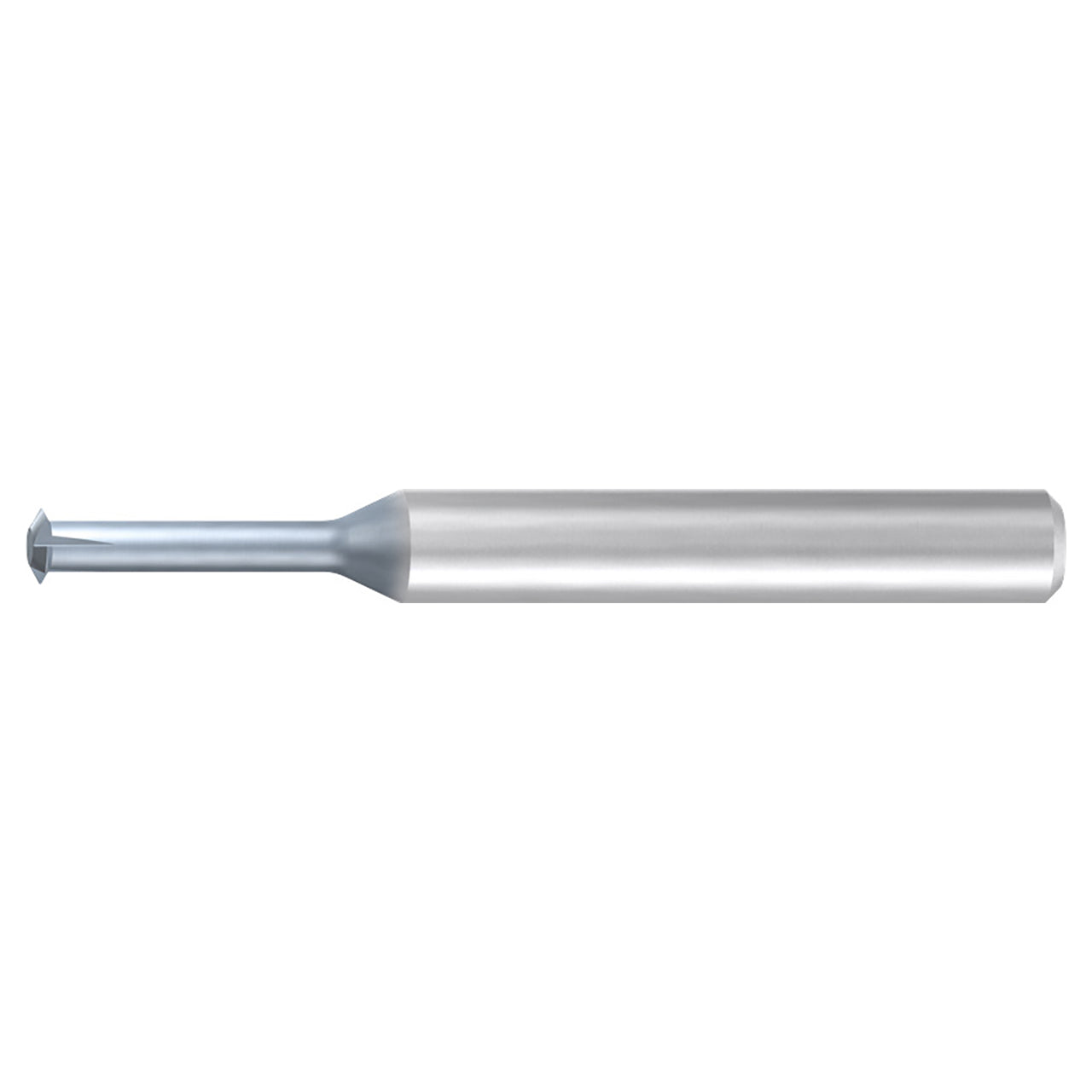

- Solid carbide circular thread mill for internal threading
- Premium sub-micro grain carbide tool designed for deeper reach applications. TICN coating for added wear resistance
Product Specifications
| Cutter Diameter (mm) | 0.195" |
| Pitch | 10 |
| Size | 1/4" |
| Thread Standard | UNC |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Aluminum, Titanium |
| Application | Single Plane |
| Type | ZGF |
| Length Group | 3 x D |
| Coolant Fed | No |
| Coating/Finish | TiCN |
| Material | Carbide |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 6 mm |
| Shank Tolerance | h6 |
| Shank Style | HA |
| Overall Length (mm) | 2.323" |
| Flute Length (mm) | 0.793" |
| Flute Direction | Right Hand, Left Hand |
