Features:

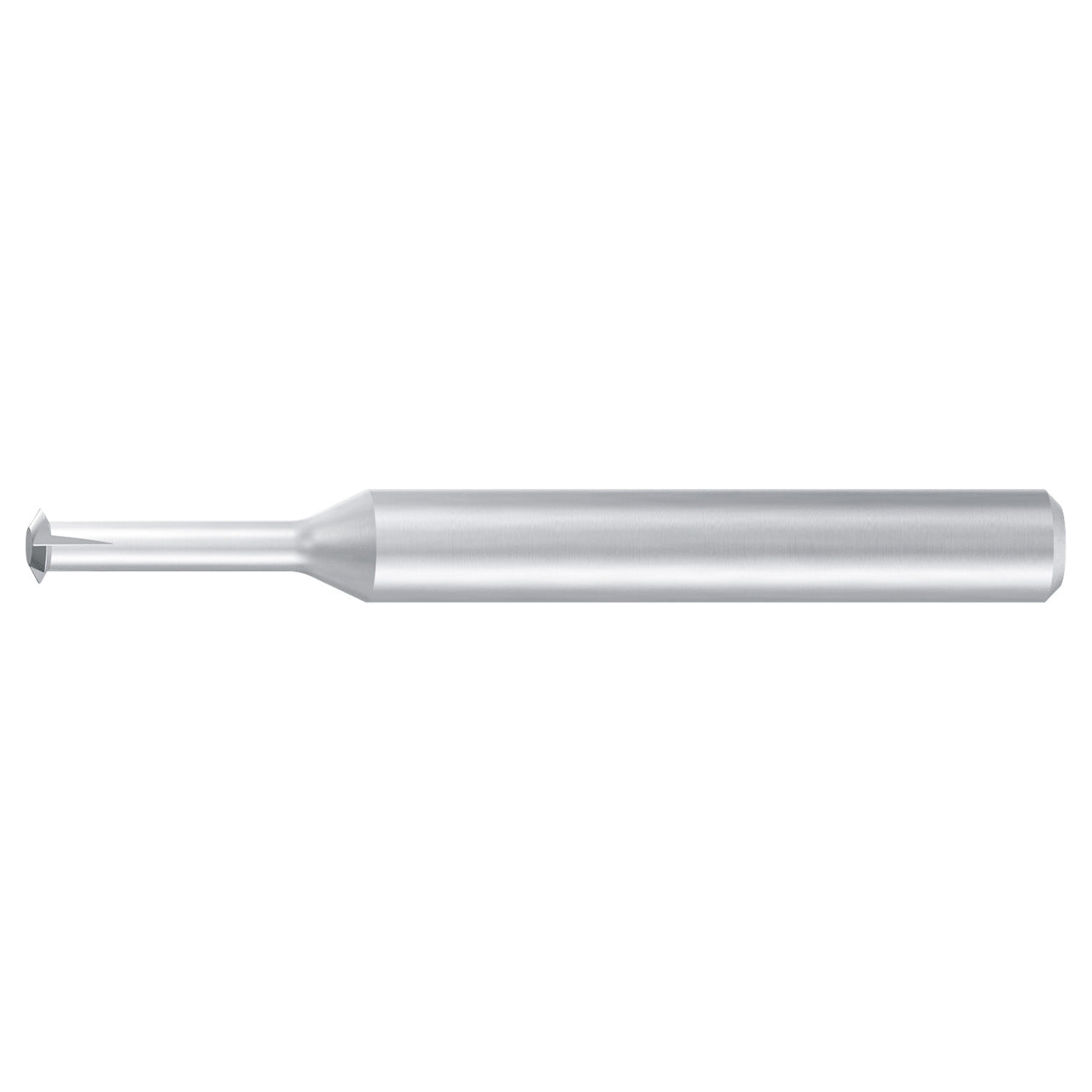

- Solid carbide circular thread mill with corrected thread profile
- Single plane thread mill for different thread sizes and pitches
Product Specifications
| Cutter Diameter (mm) | 0.7 mm |
| Pitch | 0.25 |
| Size | M 1-M 1.2 |
| Thread Standard | M/MF |
| Applicable Material | Steel, Cast Iron, Aluminum, Titanium |
| Application | Single Plane |
| Type | ZGF-THREADS-ALL |
| Length Group | 2 x D |
| Coolant Fed | No |
| Coating/Finish | Bright |
| Material | Carbide |
| Number of Flutes | 1 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 3 mm |
| Shank Tolerance | h6 |
| Shank Style | HA |
| Overall Length (mm) | 39 mm |
| Flute Length (mm) | 2.8 mm |
| Flute Direction | Right Hand, Left Hand |
