Features:

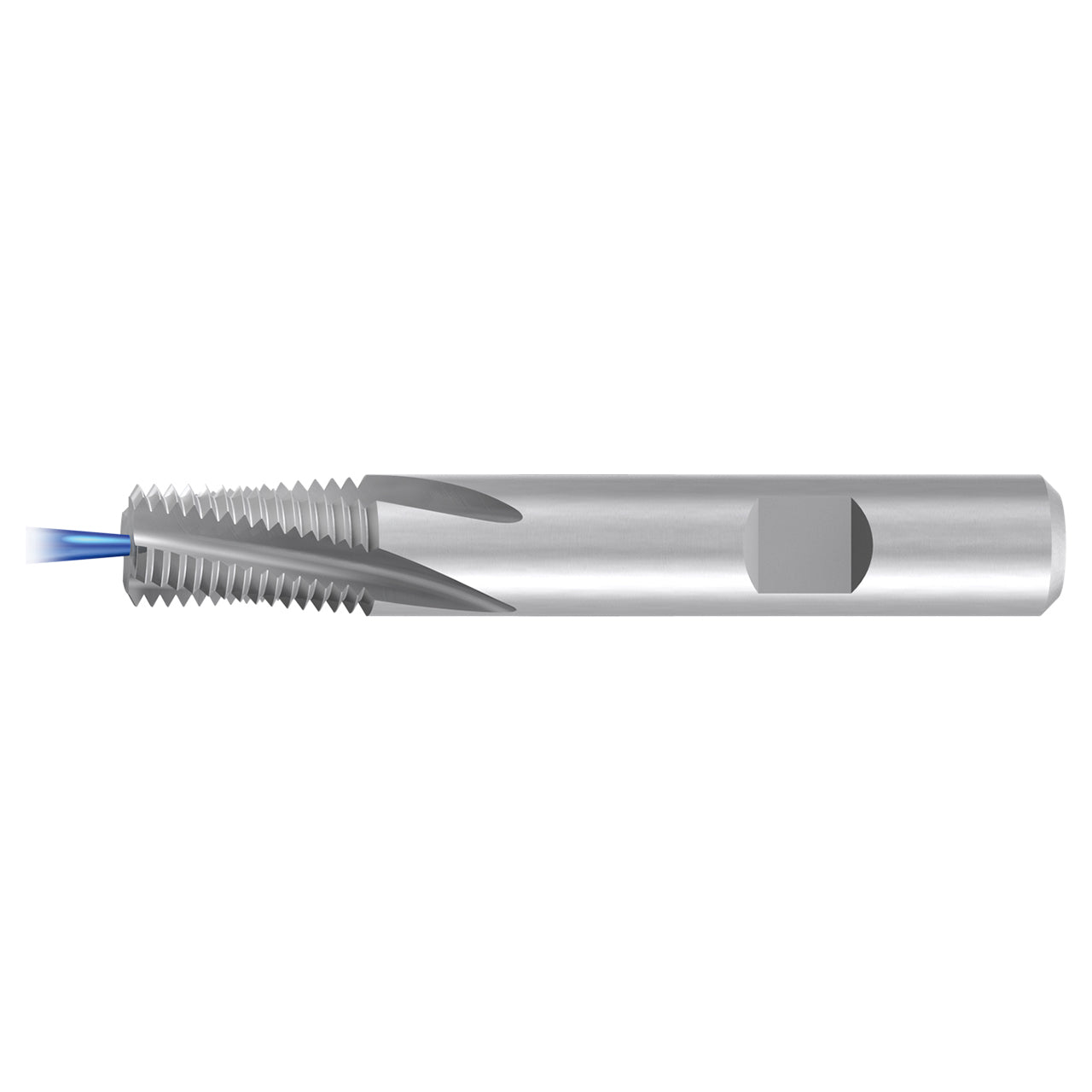

- Innovative high performance thread mill for NPT threads
- Extended milling section with 14 cutting teeth to produce API-LP threads
Product Specifications
| Cutter Diameter (mm) | 5.9 mm |
| Pitch | 27 |
| Size | 1/16" |
| Thread Standard | NPT (API-LP) |
| Applicable Material | Steel, Cast Iron, Aluminum, Titanium |
| Application | Full Profile |
| Type | GF-KEG-Pipe Threads |
| Length Group | Long |
| Coolant Fed | Axial |
| Coating/Finish | Bright |
| Material | Carbide |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 15 Degree |
| Shank Diameter (mm) | 8 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 36 mm |
| Flute Length (mm) | 5.9 mm |
| Flute Direction | Right Hand, Left Hand |
