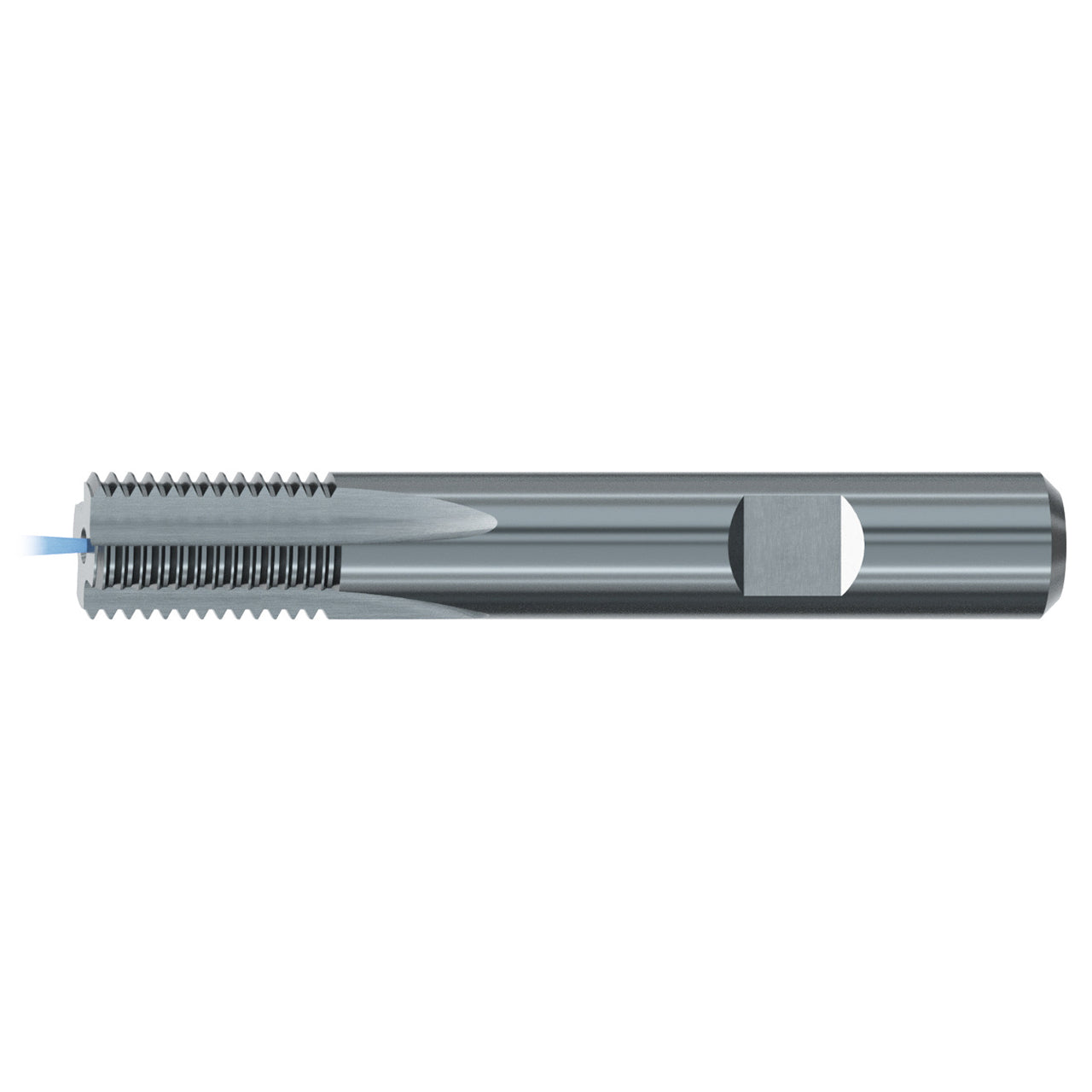

Features:
- Thread mills with standard thread profile (for different thread sizes but for one pitch only)
- For production of internal threads
- In order to avoid serious profile deviation in internal threads, the cutter diameter should not exceed 2/3 (3/4 with fine threads) of the thread to be produced
- Pre-drilled hole is required
Product Specifications
| Manufacturer Part Number | GF163151.9548 |
| Thread Size | 1/2"-14 |
| Thread Diameter Size | 1/2" |
| Thread Per Inch (TPI) | 14 TPI |
| Overall Length (mm) | 105.00mm |
| Flute Length (mm) | 33.56mm |
| Number of Flutes | 5 |
| Dimensional Standard | DIN 228 |
| Shank Tolerance | h6 |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Thread Standard | G |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Cutting Edge Material | Carbide |
| Coating | Bright |
| Product Type | Straight Flute Thread Mill |
