Features:

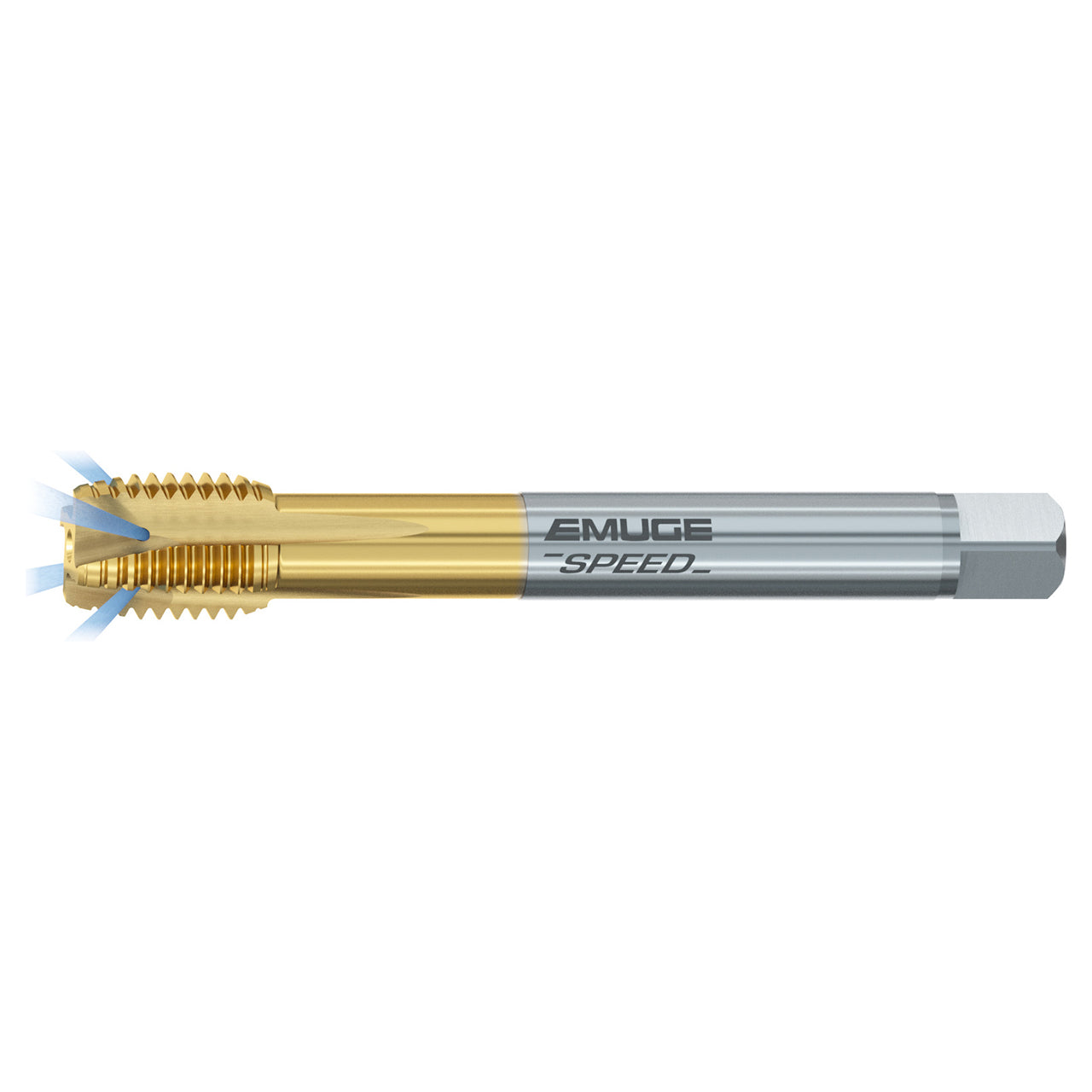

- Speed taps are able to operate at higher cutting speeds than conventional designs Rekord B style taps have a spiral point grind that pushes chips forward and are suitable for through hole applications
- Radial coolant fed to maximize chip evacuation and improve thread quality
- Ideal for use with EMUGE Speedsynchro Modular
- Longer tool life and more consistent thread quality
Product Specifications
| Manufacturer Part Number | CW208F01.5048 |
| Thread Size | 9/16"-18" |
| Thread Diameter Size (Inch) | 9/16" |
| Thread Standard | UNF |
| Thread per Inch (TPI) | 18 TPI |
| Tap Square (Decimal Inch) | 0.322" |
| Thread Length (Decimal Inch) | 0.556" |
| Overall Length (Decimal Inch) | 3.937" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.429" |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 4-5 P |
| Tap Chamfer Form | B |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Radial |
| Number of Flute | 4 |
| Cutting Edge Material | HSSE-PM |
| Coating | TIN-70 |
| Tool Type | Rekord B-Steel |
| Application | Spiral Point Taps |
| Product Type | Spiral Point Tap |
