Features:

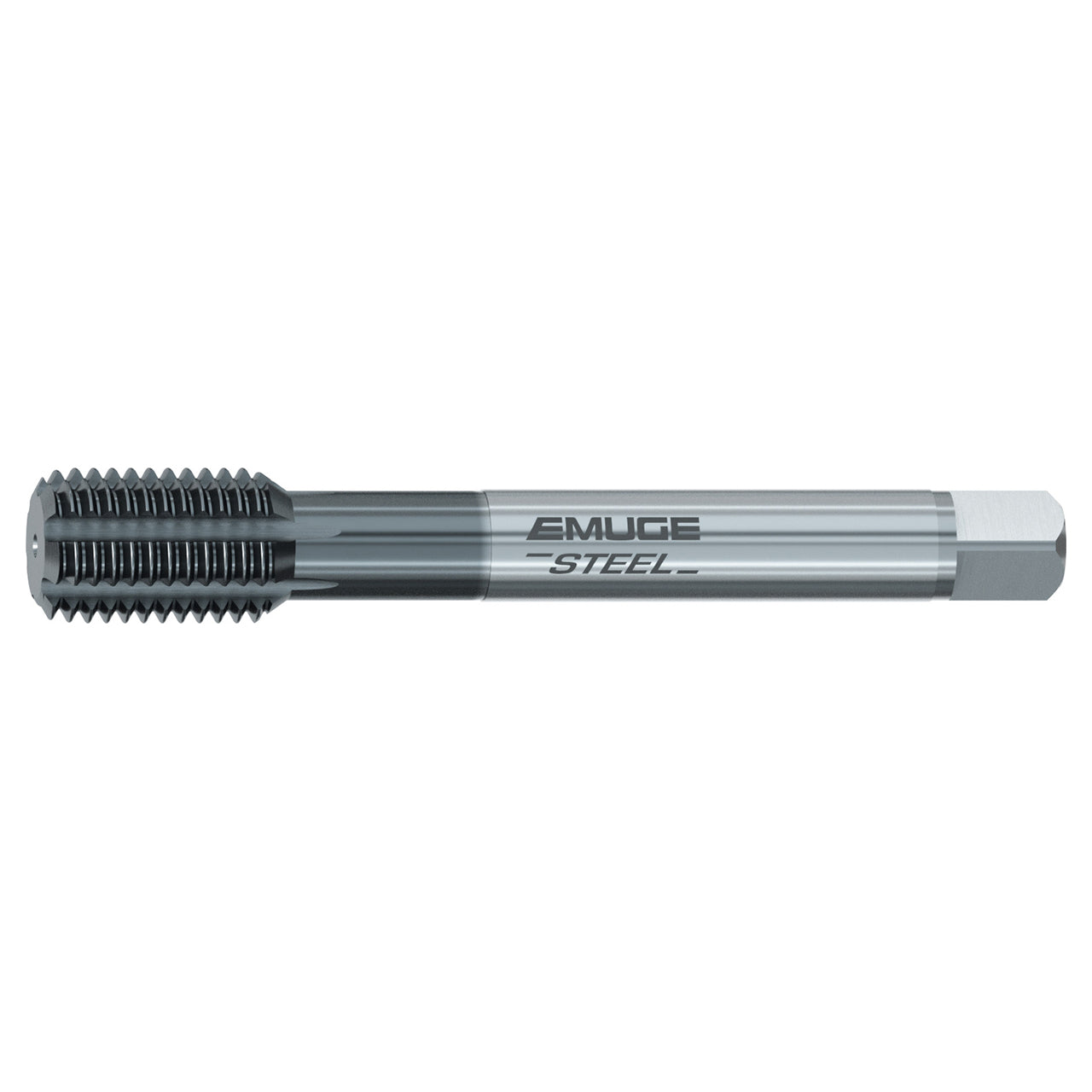

- The Druck Steel roll form tap for the chipless production of internal threads, blind and though hole
- Steel Alloys & Long Chipping Materials
- TICN coated for additional wear resistance
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | CU929000.5621 |
| Thread Size | 1/2"-13" |
| Thread Diameter Size (Inch) | 1/2" |
| Thread Standard | STI-UNC |
| Thread per Inch (TPI) | 13 TPI |
| Tap Square (Decimal Inch) | 0.360" |
| Thread Length (Decimal Inch) | 1.063" |
| Overall Length (Decimal Inch) | 4.331" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.480" |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Cutting Edge Material | HSSE |
| Coating | TICN |
| Tool Type | Roll Form - Druck |
| Application | STI Taps |
| Product Type | Thread Forming STI Tap |
