Features:

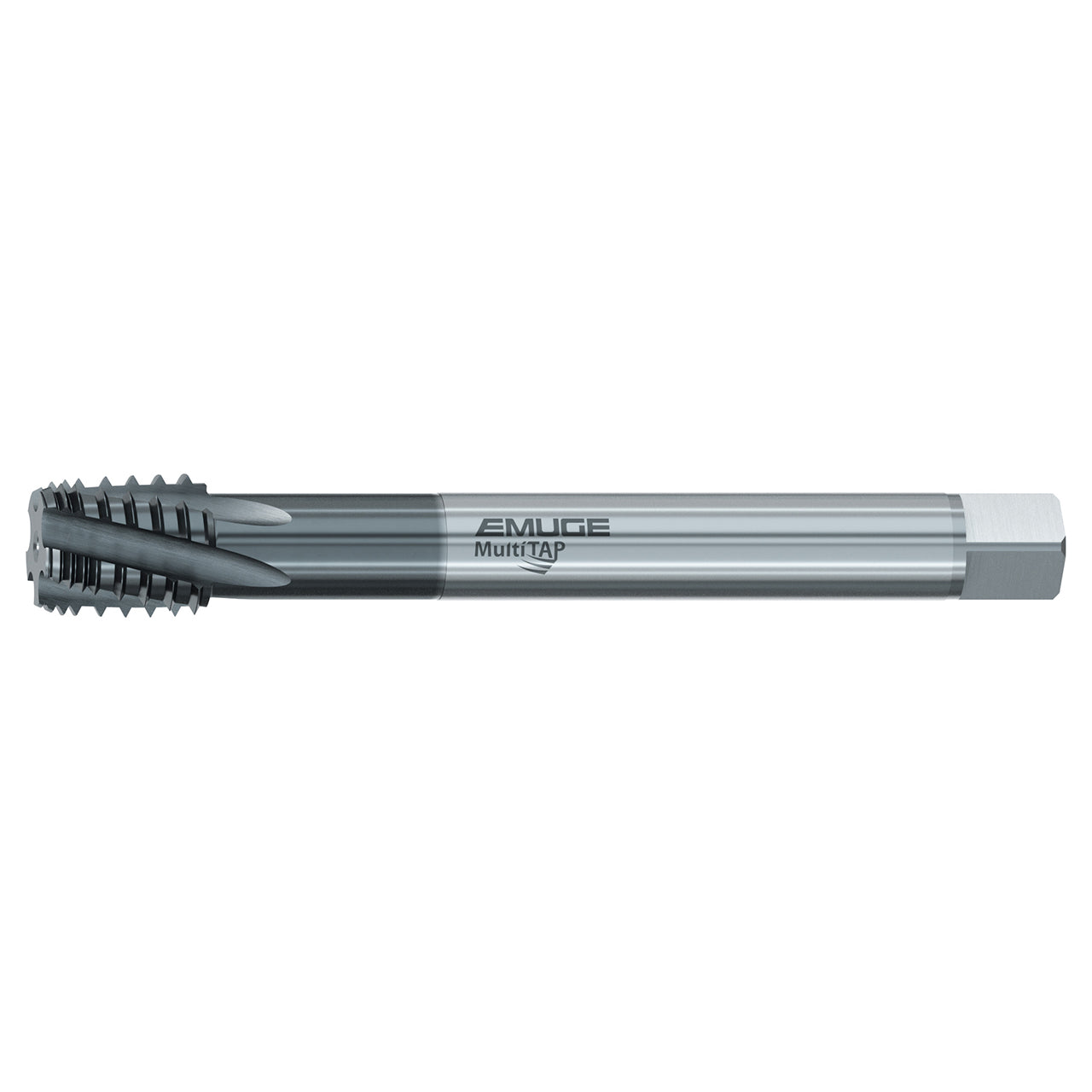

- MultiTAP pipe taps are designed to operate in various materials found in a job shop Environment
- The NPTF design has a slow spiral design to improve tool life
- Interrupted, skip tooth profile reduces torque requirements and extends tool life
- TICN coated for additional wear resistance and increased tool life
Product Specifications
| Manufacturer Part Number | CU869300.5788 |
| Thread Size | 1'' -11-1/2" |
| Thread Diameter Size (Inch) | 1" |
| Thread Standard | NPTF |
| Thread per Inch (Inch) | 11-1/2" |
| Tap Square (Decimal Inch) | 0.843" |
| Thread Length (Decimal Inch) | 1.260" |
| Overall Length (Inch) | 6" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 1.125" |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | Emuge Standard |
| Flute Direction | Right Hand |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 5 |
| Flute Helix Angle (Degree) | 15 Degree |
| Cutting Edge Material | HSSE |
| Coating | TICN |
| Tool Type | MultiTAP |
| Application | Pipe Taps |
| Product Type | Interrupted Thread Pipe Tap |
