Features:
- Specially designed large size tapping with a cutting crown for excellent self-guidance when beginning to cut.
- Frontal recess (bell-shaped chip collector) for receiving the chip material in blind hole threads
- Increased profile clearance angle reduces friction and thus the inclination to cold pressure welds
- Preferably to be used with paste lubrication!
Product Specifications

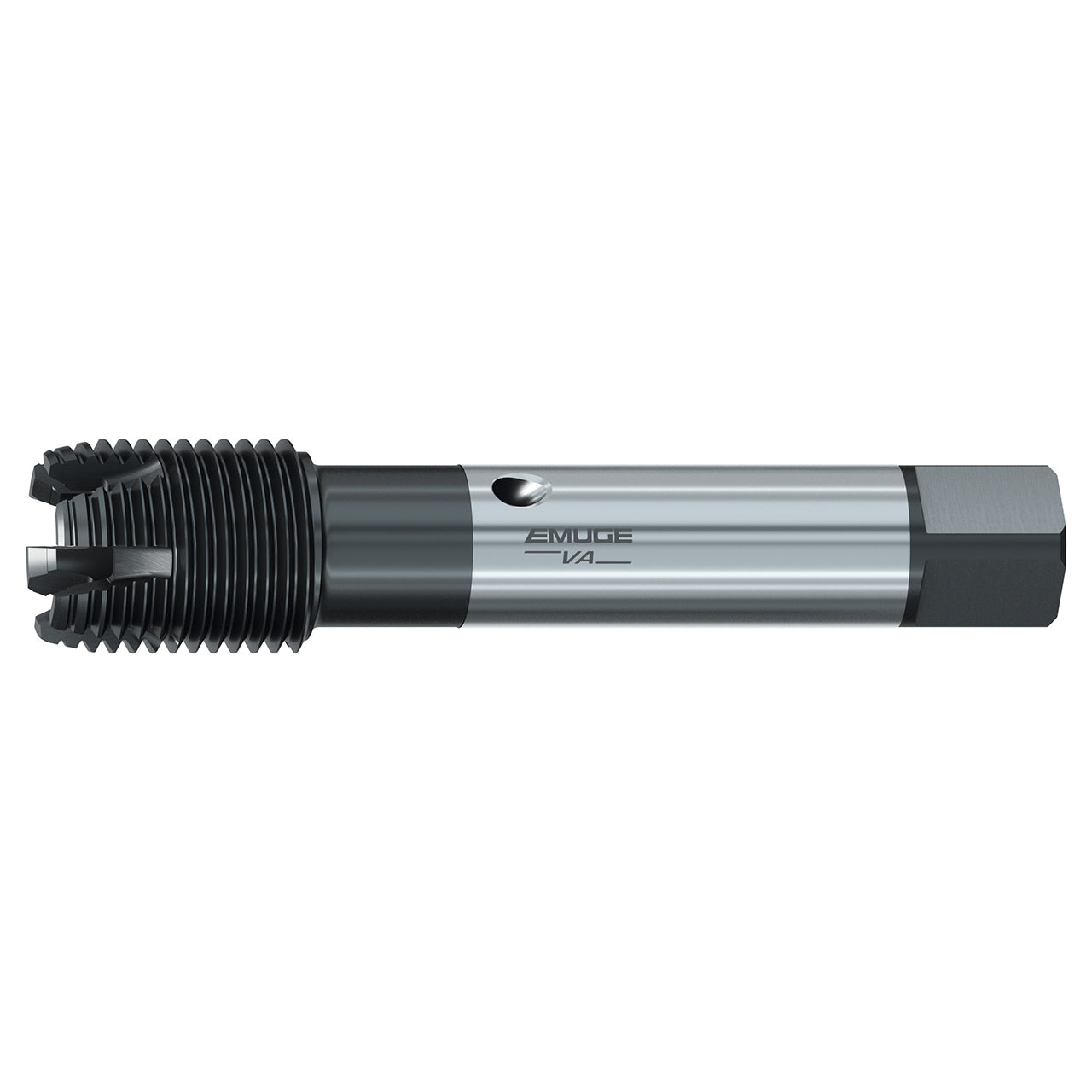

| Manufacturer Part Number | CU803011.5052 |
| Thread Size | 1" -12 |
| Thread Diameter Size | 1" |
| Thread Per Inch (TPI) | 12 TPI |
| Tap Square (Decimal Inch) | 0.600" |
| Thread Length (Decimal Inch) | 1.024" |
| Overall Length (Decimal Inch) | 5.512" |
| Length Group | Extra Length |
| Number of Flutes | 5 |
| Dimensional Standard | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | UNF |
| Thread Tolerance Class | 3BX |
| Tap Chamfer | 2 -3 P |
| Tap Chamfer Form | C |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | NE2 |
| Product Type | Straight Flute Tap |
