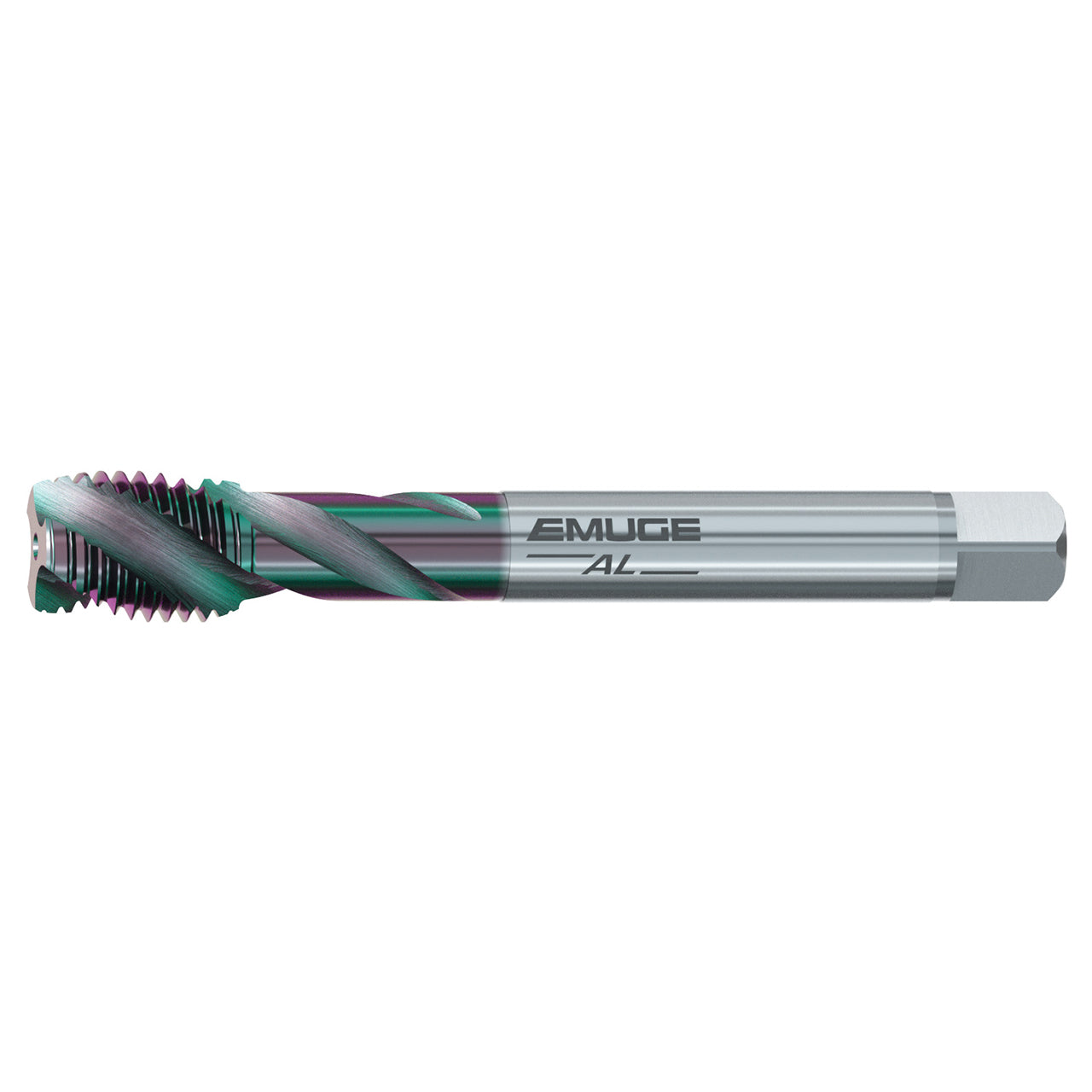

Product Specifications
| Manufacturer Part Number | CU503G10.5050 |
| Thread Size | 3/4"-16 |
| Thread Diameter Size | 3/4" |
| Thread Per Inch (TPI) | 16 TPI |
| Overall Length (Decimal Inch) | 4.331" |
| Length Group | DIN Length |
| Number of Flutes | 2 |
| Flute Helix Angle (Degree) | 45 Degree |
| Dimensional Standard | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Thread Standard | UNF |
| Thread Tolerance Class | 3B |
| Tap Chamfer | 2 -3 P |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-104 |
| Product Type | Spiral Flute Tap |
