Features:

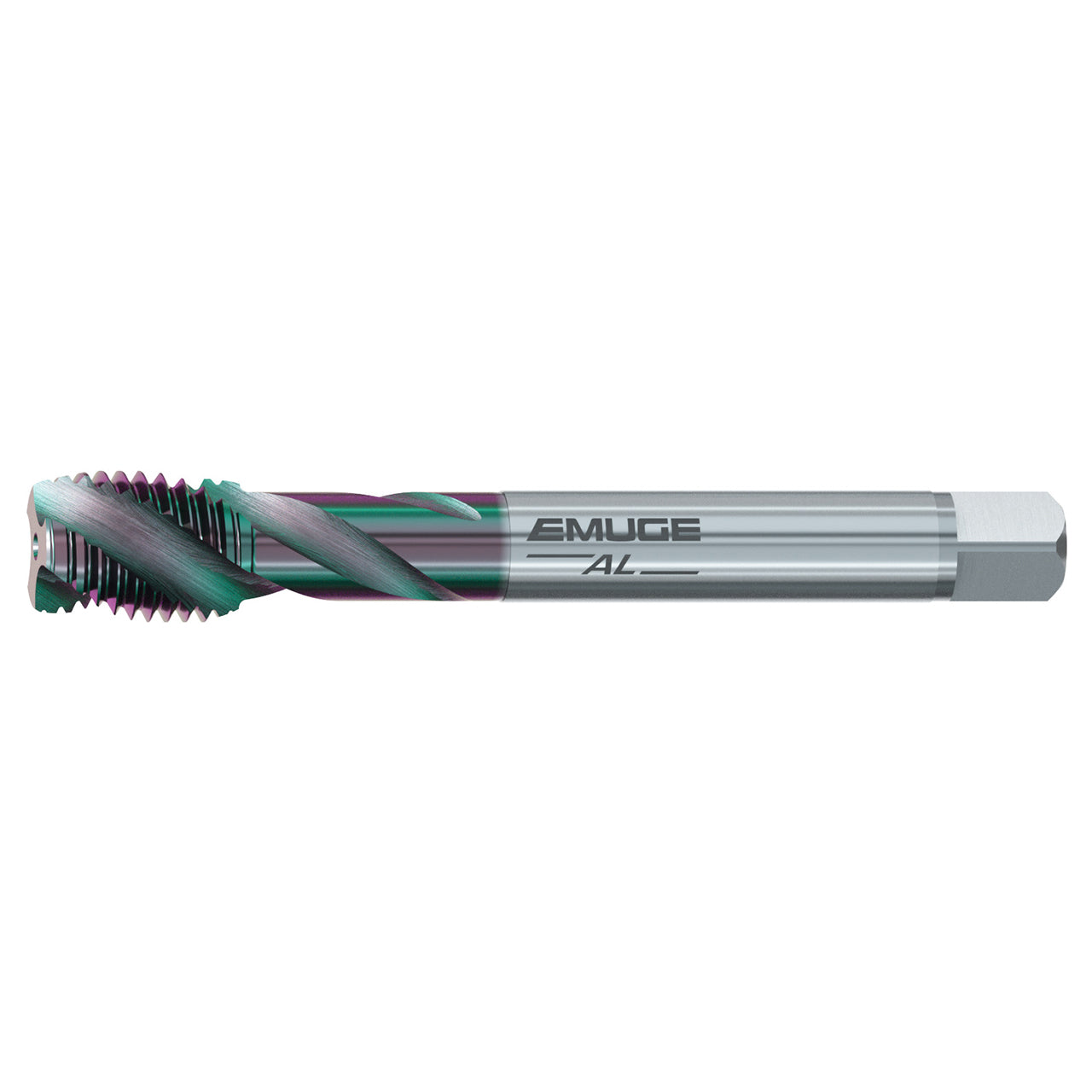

- The Enorm AL design is typically for blind hole threads in long chipping materials.
- Higher rake angle provides better shearing action for maximum tool life
- GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | CU503G00.5016 |
| Thread Size | 3/4"-10 |
| Thread Diameter Size | 3/4" |
| Thread Per Inch (TPI) | 10 TPI |
| Tap Square (Decimal Inch) | 0.275" |
| Thread Length (Decimal Inch) | 0.769" |
| Overall Length (Decimal Inch) | 4.921" |
| Length Group | DIN Length |
| Number of Flutes | 2 |
| Flute Helix Angle (Degree) | 45 Degree |
| Dimensional Standard | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Thread Standard | UNC |
| Thread Tolerance Class | 2B |
| Tap Chamfer | 2 -3 P |
| Tap Chamfer Form | C |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-104 |
| Product Type | Spiral Flute Tap |
