Features:

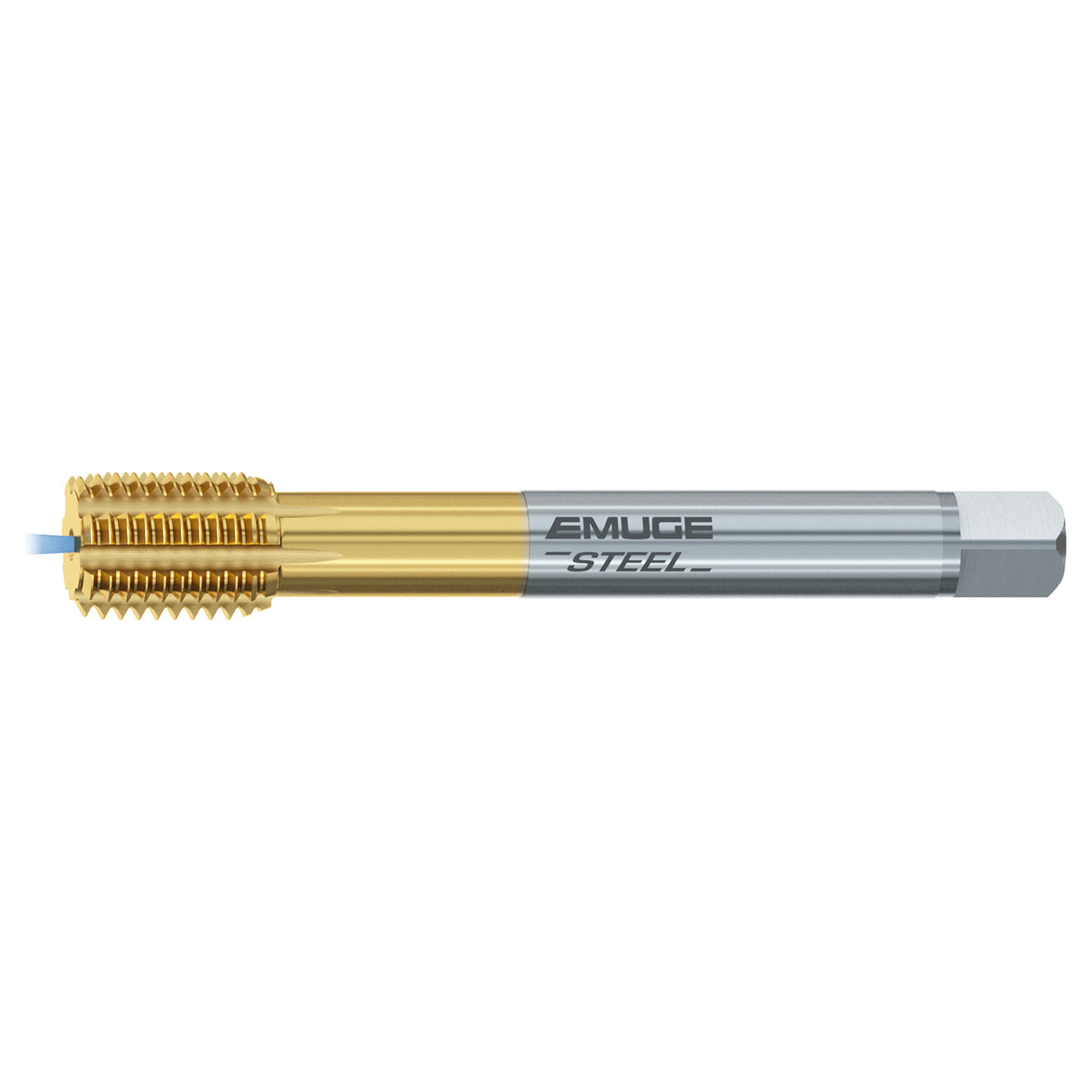

- The InnoForm Steel M roll form tap is designed for mild steel alloy materials
- Short threaded part and special polygon shape for less torque
- TICN-66 coating for less wear and longer tool life
- IKZ - Axial exit coolant holes improve thread quality
Product Specifications
| Manufacturer Part Number | CU447F00.5049 |
| Thread Size | 5/8"-18" |
| Thread Diameter Size (Inch) | 5/8" |
| Thread Standard | UNF |
| Thread per Inch (TPI) | 18 TPI |
| Tap Square (Decimal Inch) | 0.360" |
| Thread Length (Decimal Inch) | 0.556" |
| Overall Length (Decimal Inch) | 3.937" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.480" |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 1.5-2 P |
| Tap Chamfer Form | E |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 11 |
| Cutting Edge Material | HSSE-PM |
| Coating | TIN-66 |
| Tool Type | EMUGE STEEL |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
