Features:

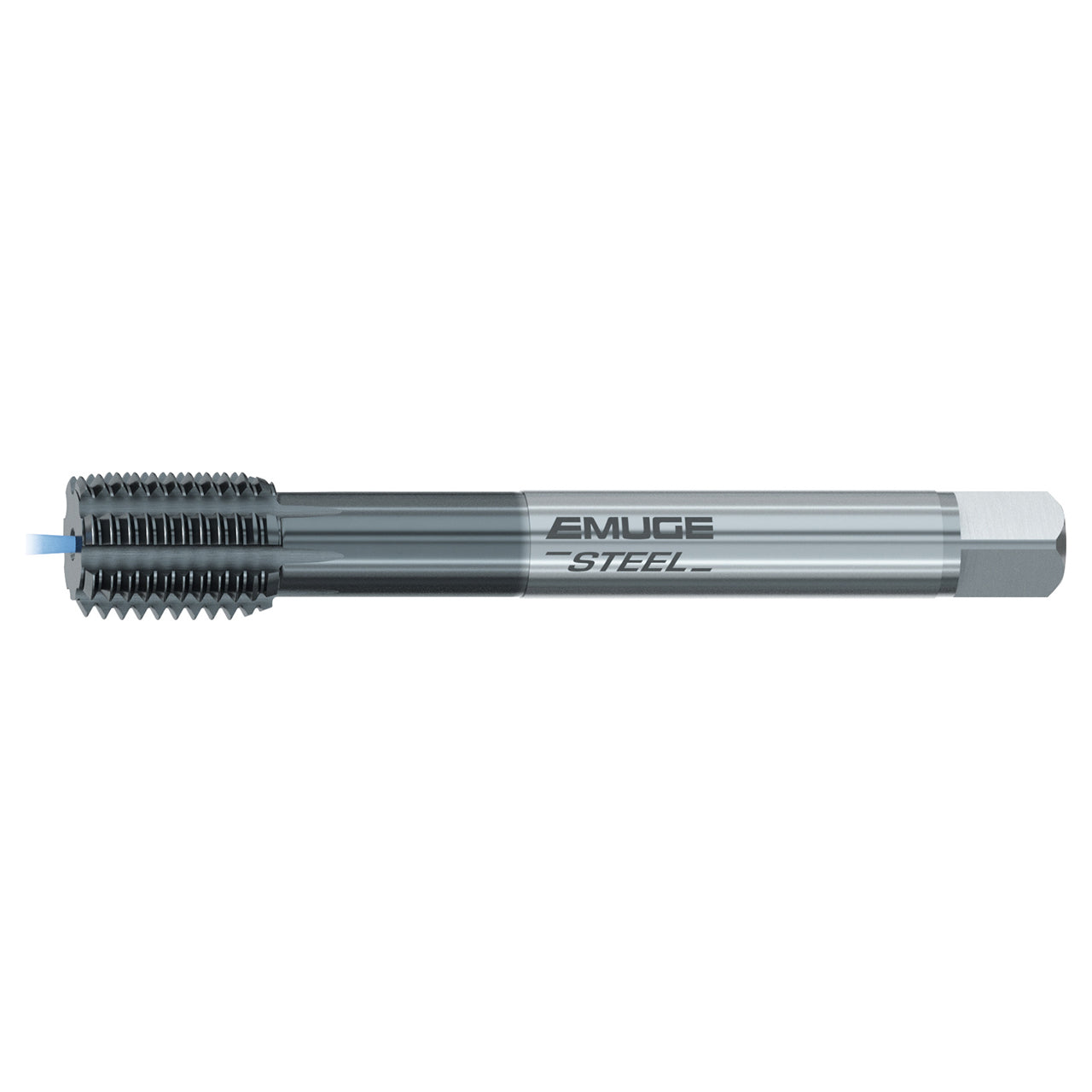

- The InnoForm Steel-H roll form tap is designed for high tensile strength materials
- Short threaded part and special polygon shape for less torque
- TICN coated for additional wear resistance
- IKZ - Axial exit coolant holes improve thread quality
Product Specifications
| Manufacturer Part Number | CU386F00.5046 |
| Thread Size | 7/16"-20" |
| Thread Diameter Size (Inch) | 7/16" |
| Thread Standard | UNF |
| Thread per Inch (TPI) | 20 TPI |
| Tap Square (Decimal Inch) | 0.242" |
| Thread Length (Decimal Inch) | 0.500" |
| Overall Length (Decimal Inch) | 3.937" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.323" |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Cutting Edge Material | HSSE-PM |
| Coating | TICN-67 |
| Tool Type | EMUGE STEEL |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
