Features:

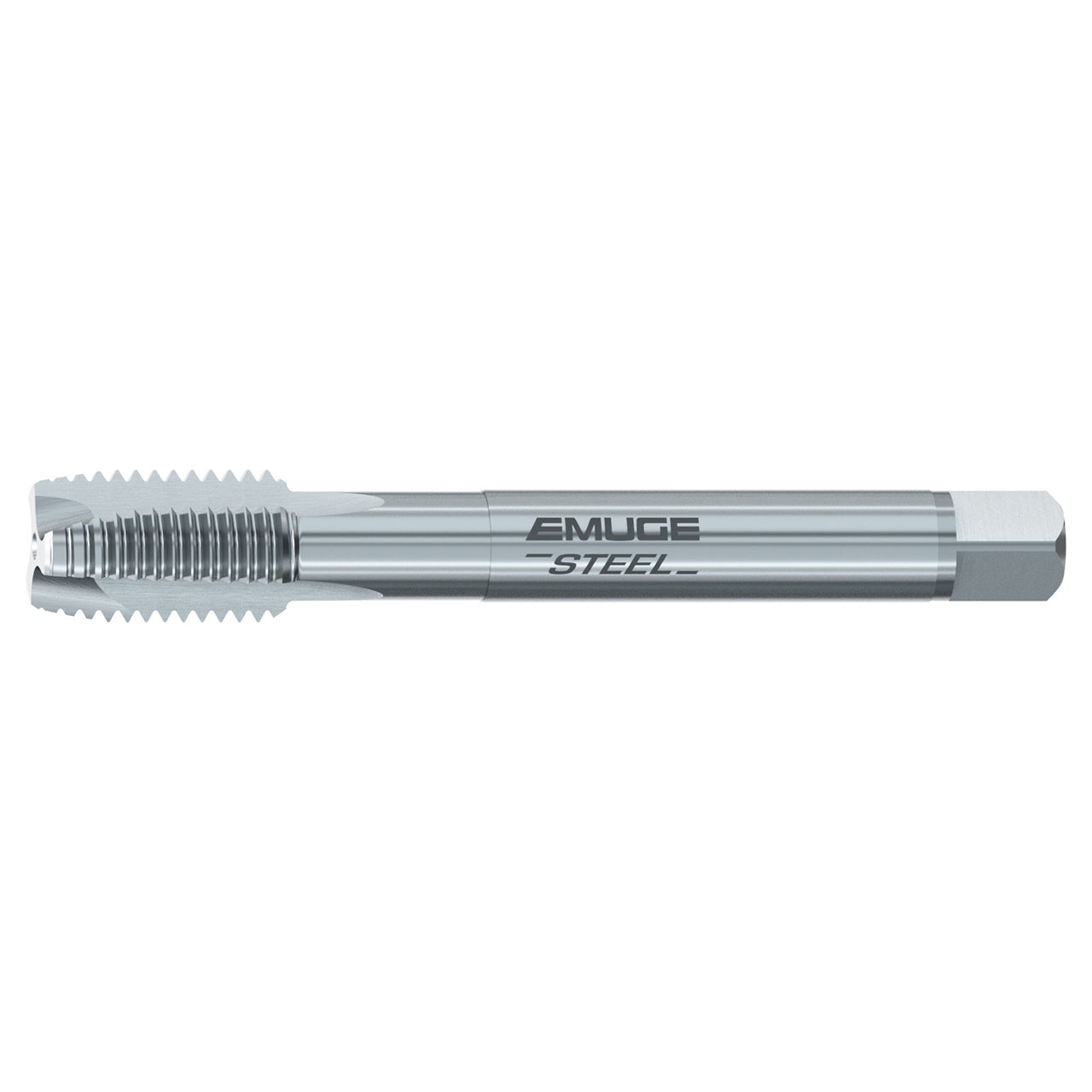

- Rekord B-Steel-L design is typically for through hole applications in long-chipping materials
- The spiral point ensures optimum chip removal in the feed direction
- Bright, uncoated surface finish
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | CU208960.5047 |
| Thread Size | 1/2"-20" |
| Thread Diameter Size (Inch) | 1/2" |
| Thread Standard | UNF |
| Thread per Inch (TPI) | 20 TPI |
| Tap Square (Decimal Inch) | 0.275" |
| Thread Length (Decimal Inch) | 0.866" |
| Overall Length (Decimal Inch) | 3.937" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.367" |
| Thread Tolerance Class | 3B |
| Tap Chamfer | 4-5 P |
| Tap Chamfer Form | B |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Left Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 4 |
| Cutting Edge Material | HSSE |
| Coating | Bright |
| Tool Type | Rekord B-Steel-L |
| Application | Spiral Point Taps |
| Product Type | Spiral Point Tap |
