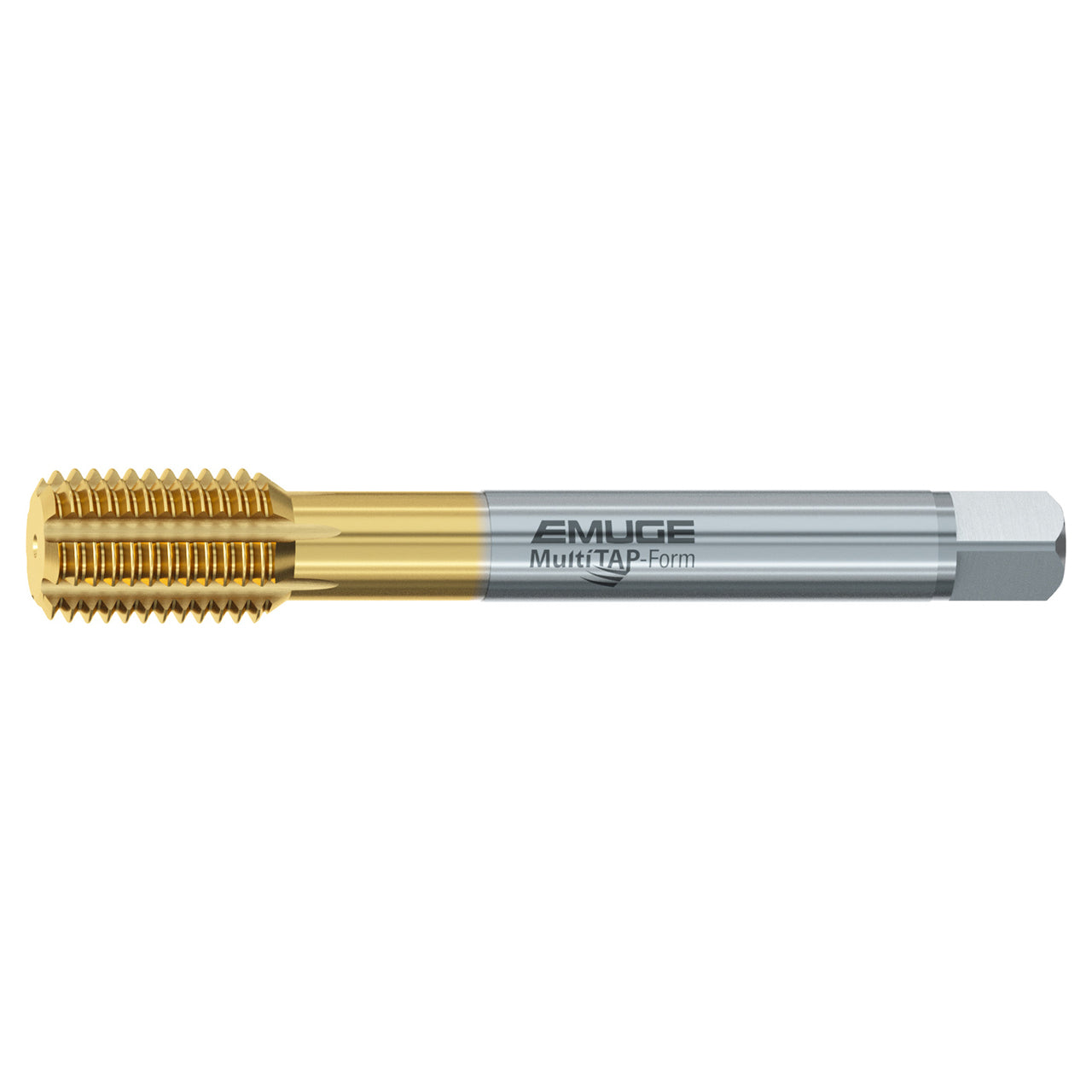

Features:
- MultiTAP will form a wide range of material including carbon steel, steel alloys, stainless steel, aluminum and copper
- This all purpose design is well suited to the job shop, short run tapping environment
- Longer tool life and more consistent thread quality
- TIN coated for heat and wear resistance
Product Specifications
| Manufacturer Part Number | C9141400.0112 |
| Thread Size | M12x1.75 |
| Thread Diameter Size | M12 |
| Thread Standard | M |
| Thread Pitch (mm) | 1.75mm |
| Tap Square (mm) | 7.00mm |
| Thread Length (mm) | 24.00mm |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 1.5-2 P |
| Tap Chamfer Form | E |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Left Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Cutting Edge Material | HSSE |
| Coating | TIN |
| Tool Type | MultiTAP Roll Form |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
