Features:

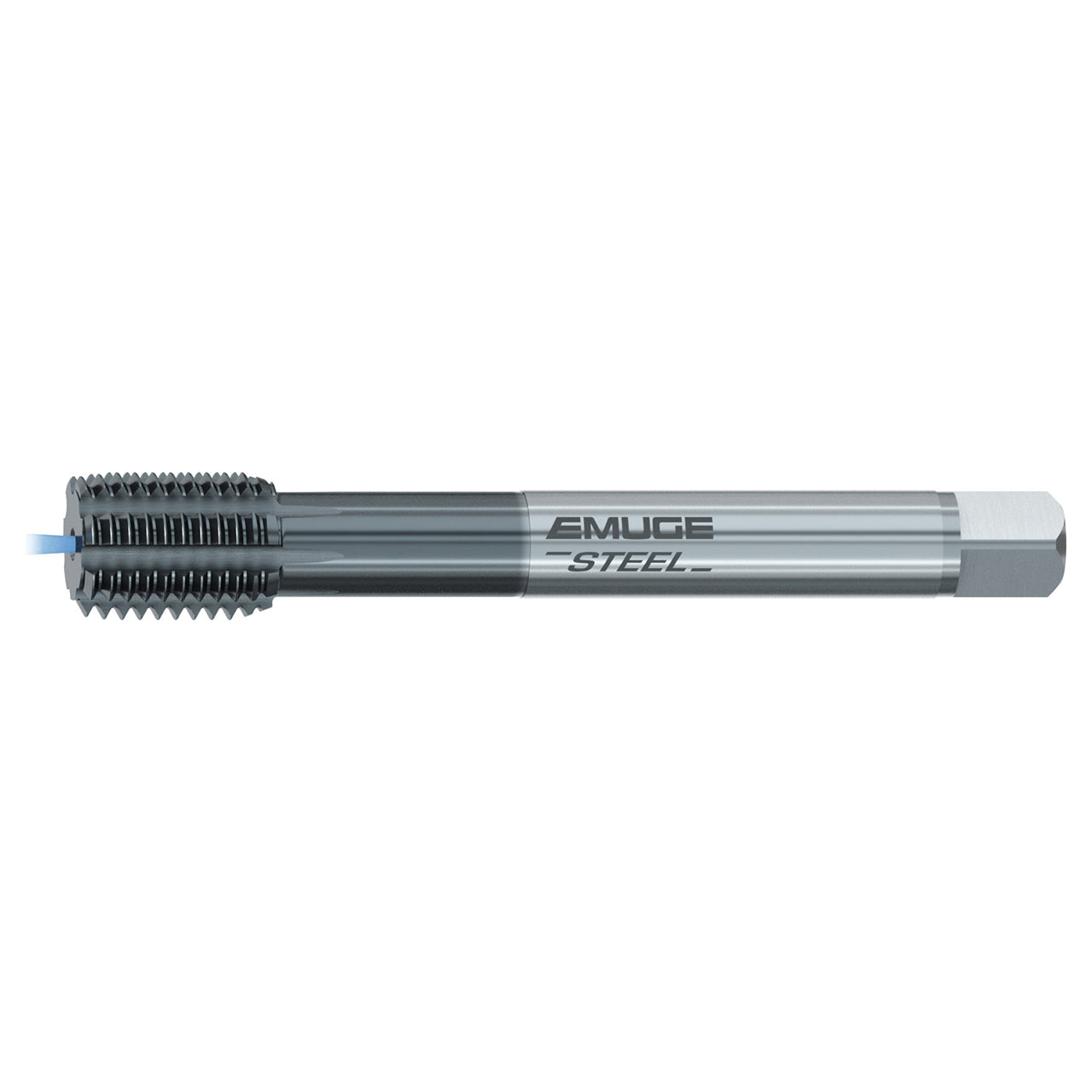

- The InnoForm Steel-H roll form tap is designed for high tensile strength materials
- Short threaded part and special polygon shape for less torque
- TICN coated for additional wear resistance
- IKZ - Axial exit coolant holes improve thread quality
Product Specifications
| Manufacturer Part Number | C5236F00.0303 |
| Thread Size | M 12x1.5 |
| Thread Diameter Size | M 12 |
| Thread Standard | MF |
| Thread Pitch (mm) | 1.50mm |
| Tap Square (mm) | 7.00mm |
| Thread Length (mm) | 22.00mm |
| Overall Length (mm) | 100.00mm |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Cutting Edge Material | HSSE-PM |
| Coating | TiCN-67 |
| Tool Type | EMUGE STEEL |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
