Features:

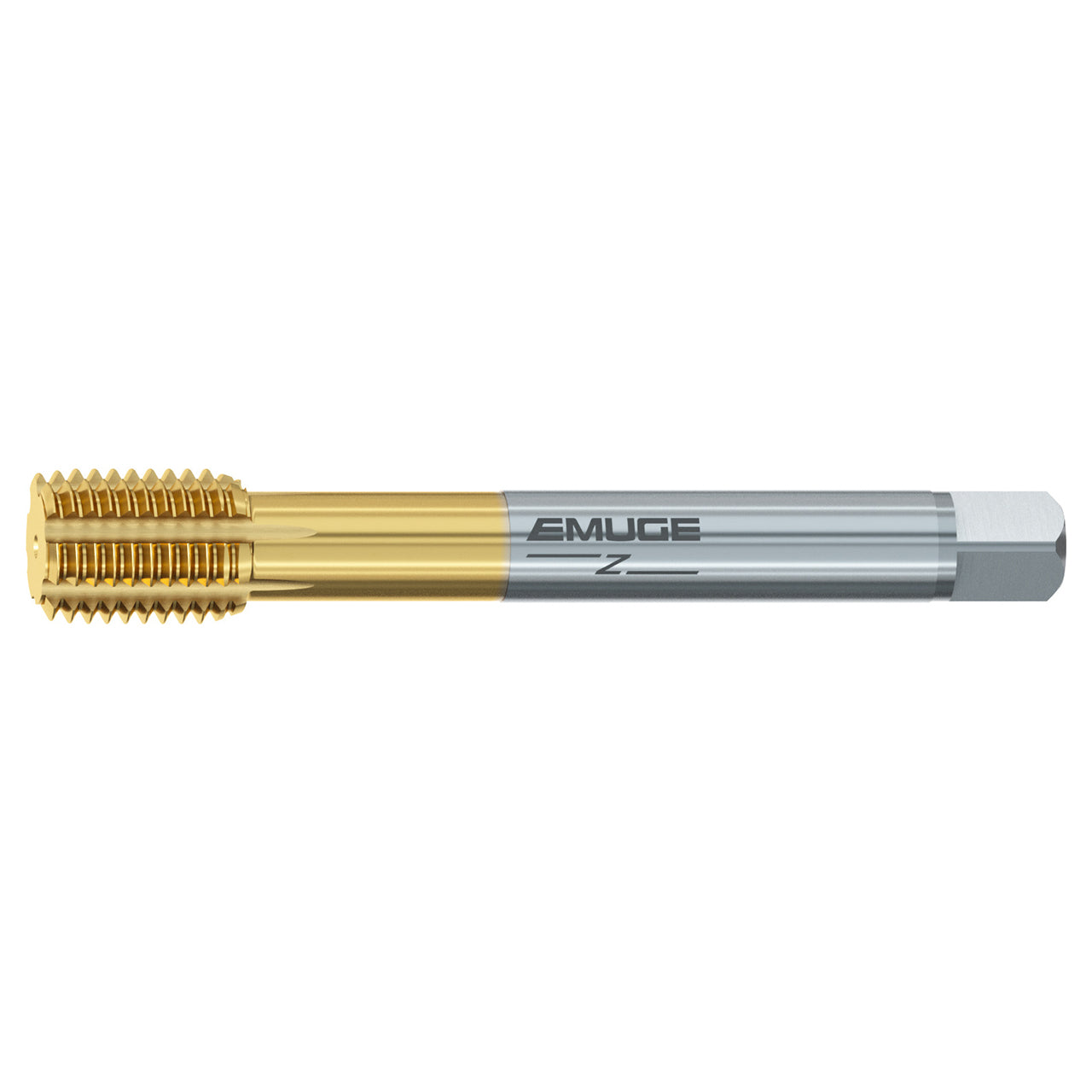

- The InnoForm Z roll form tap is designed for low tensile strength materials
- Short threaded part and special polygon shape for less torque
- TIN-80 coated for heat and wear resistance
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C521Z700.5016 |
| Cutting Diameter (Decimal Inch) | 10.000" |
| Thread Size | 3/4"-10" |
| Thread Diameter Size (Inch) | 3/4" |
| Thread Standard | UNC |
| Thread per Inch (TPI) | 10 TPI |
| Tap Square (mm) | 11.00mm |
| Thread Length (mm) | 25.00mm |
| Overall Length (mm) | 125.00mm |
| Flute Length (mm) | 30.00mm |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Cutting Edge Material | HSSE-PM |
| Coating | TiN-80 |
| Tool Type | EMUGE Z |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
