Features:

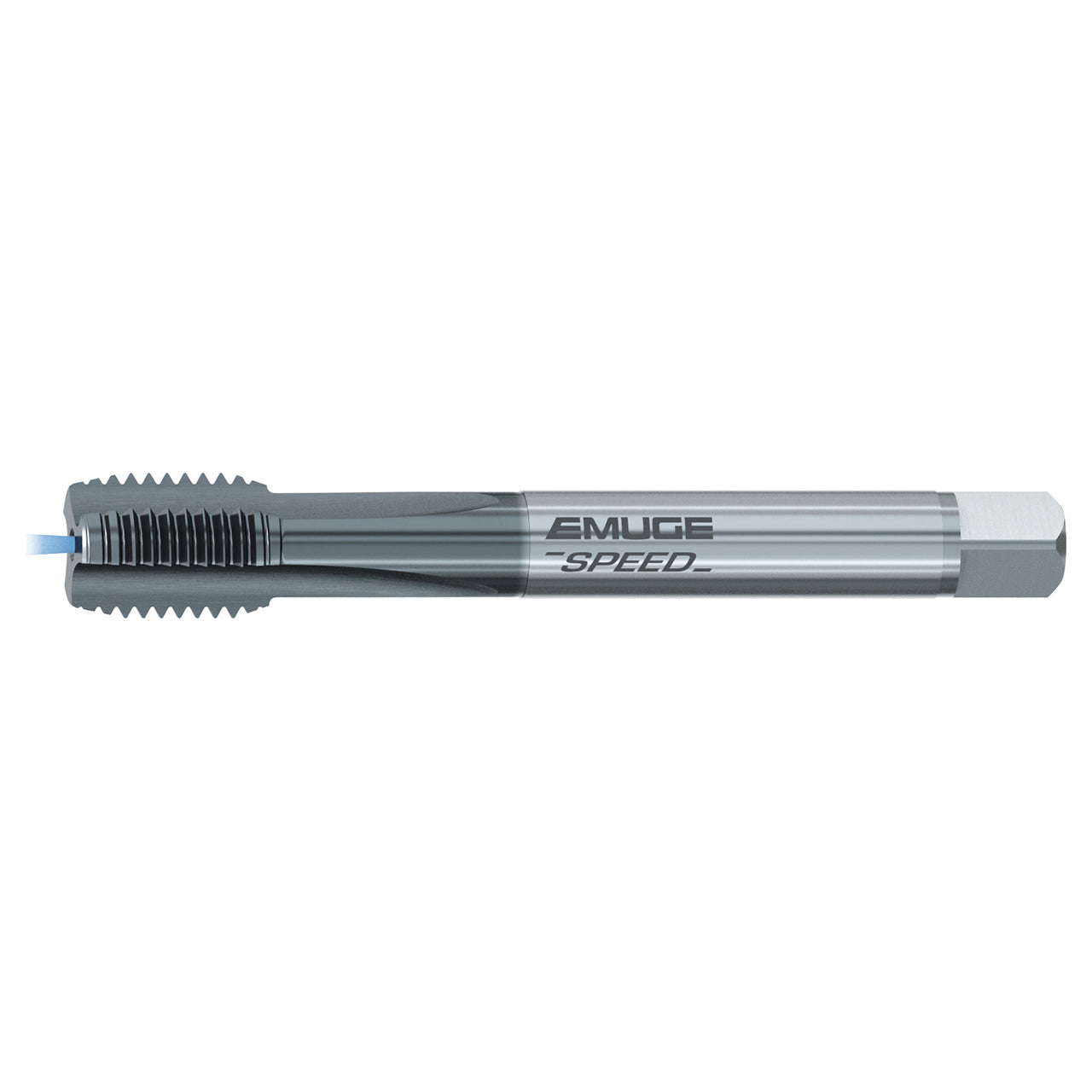

- Rekord A/E-Speed is a straight flute design for high speed tapping in short chipping materials in through & blind hole applications
- Speed taps are able to operate at higher cutting speeds than conventional designs
- Radial exit coolant fed design for optimized chip evacuation
- TICN coating for less wear and longer tool life
Product Specifications
| Manufacturer Part Number | C3169401.0116 |
| Thread Size | M 16x2 |
| Thread Diameter Size | M 16 |
| Thread Standard | M |
| Thread Pitch (mm) | 2.00mm |
| Tap Square (mm) | 9.00mm |
| Thread Length (mm) | 20.00mm |
| Overall Length (mm) | 110.00mm |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 1.5-2 P |
| Tap Chamfer Form | E |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 3 |
| Cutting Edge Material | HSSE |
| Coating | TiCN |
| Tool Type | Rekord A/E-Speed |
| Application | Straight Flute Taps |
| Product Type | Straight Flute Tap |
