Features:
- Specially designed large size tapping with a cutting crown for excellent self-guidance when beginning to cut.
- Frontal recess (bell-shaped chip collector) for receiving the chip material in blind hole threads
- Increased profile clearance angle reduces friction and thus the inclination to cold pressure welds
- Preferably to be used with paste lubrication!
Product Specifications
| Manufacturer Part Number | C0803101.0130 |
| Thread Size | M 30x3.5 |
| Thread Diameter Size | M 30 |
| Overall Length (mm) | 180.00mm |
| Length Group | Extra Length |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | M |
| Tap Chamfer | 2 -3 P |
| Tap Chamfer Form | C |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | NE2 |

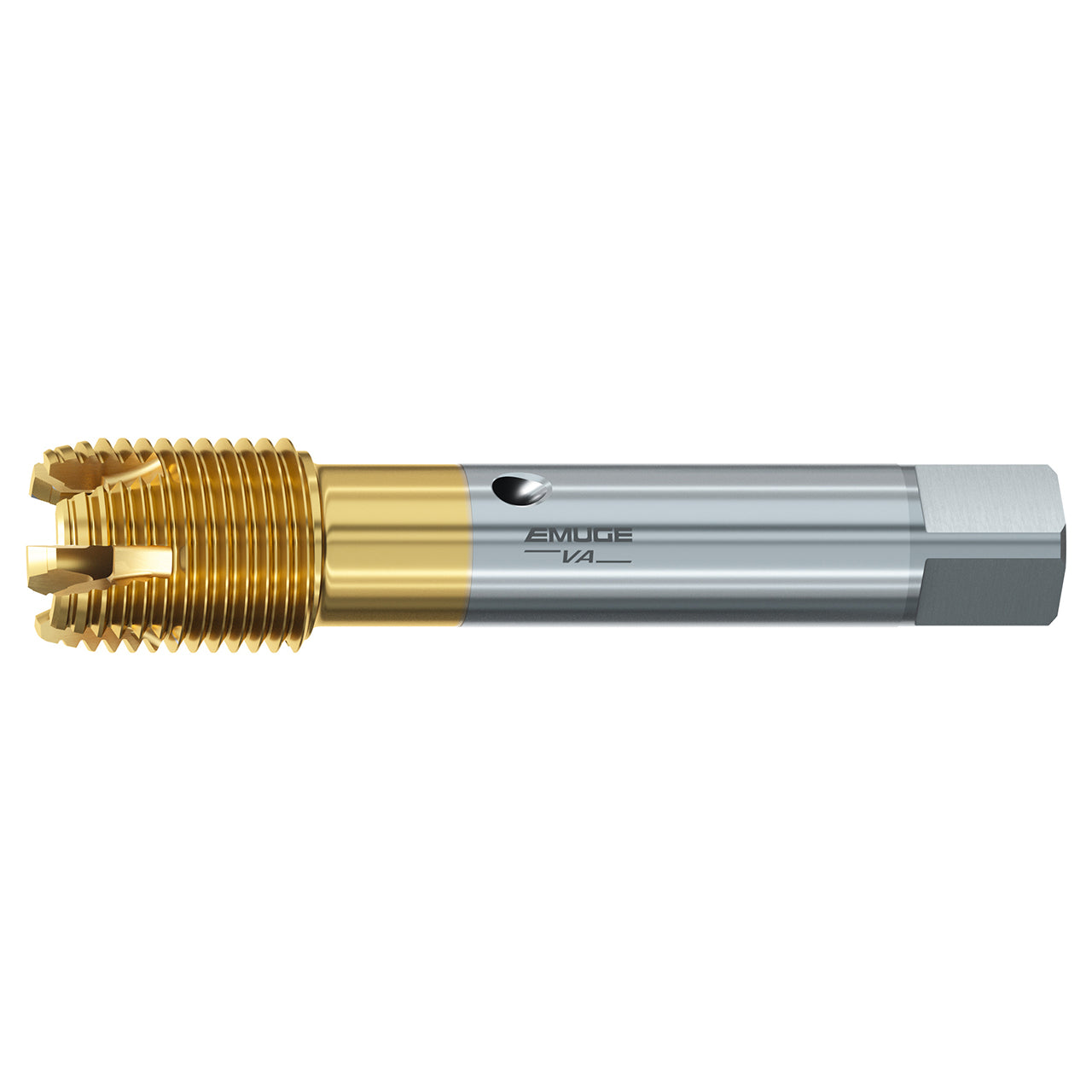

| Product Type | Straight Flute Tap |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
