Features:

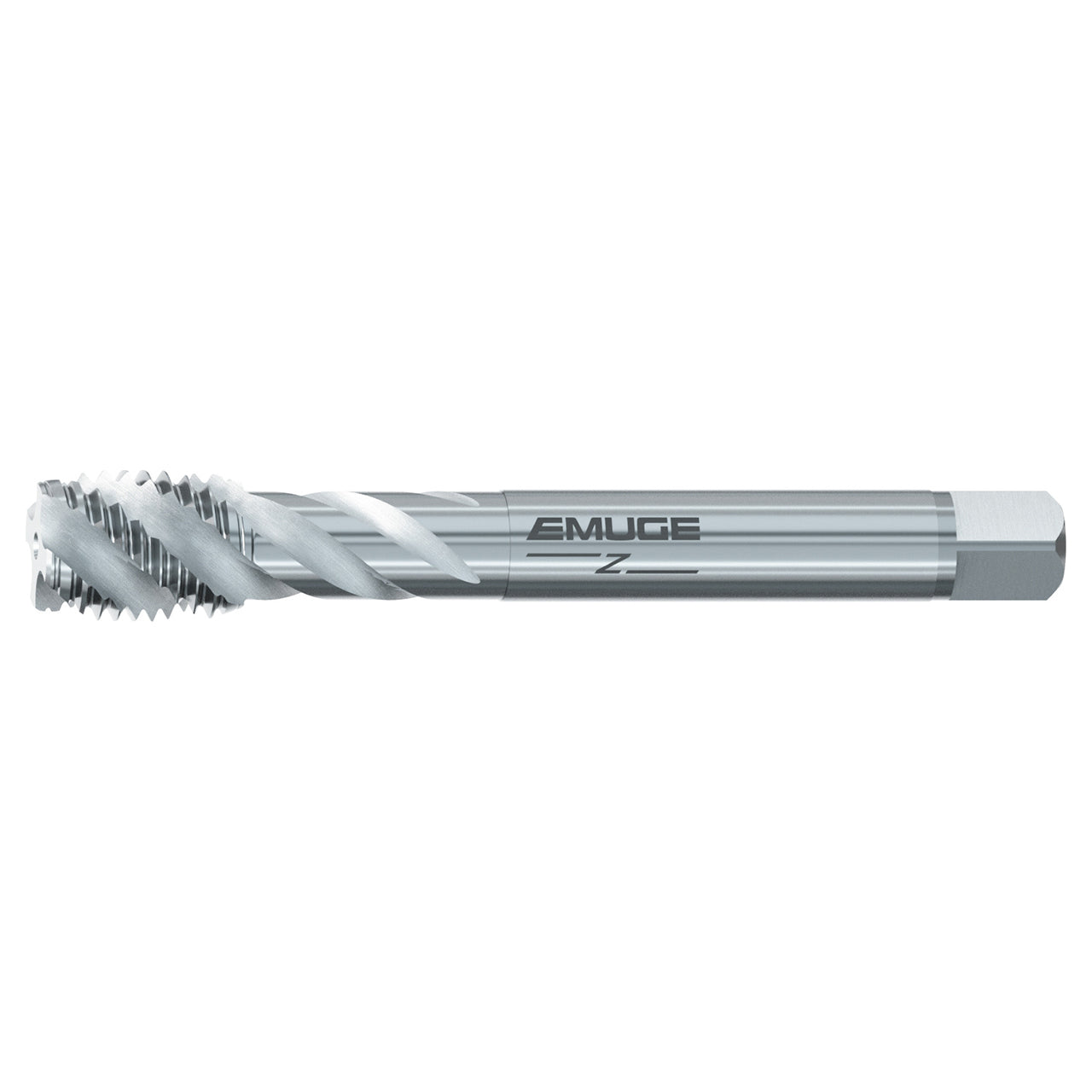

- The Enorm Z/E design is typically for blind hole threads in long chipping materials
- The fast spiral flute provides good chip removal from blind holes
- Bright, uncoated surface finish
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C0513500.1059 |
| Thread Size | M 14x2 |
| Thread Diameter Size | M 14 |
| Thread Standard | LK-M |
| Thread Pitch (mm) | 2.00mm |
| Thread Tolerance Class | BT |
| Tap Chamfer | 1.5-2 P |
| Tap Chamfer Form | E |
| Class of Fit | LK |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Flute Helix Angle (Degree) | 45 Degree |
| Cutting Edge Material | HSSE |
| Coating | Bright |
| Tool Type | Enorm Z/E |
| Application | Spiral Flute Taps |
| Product Type | Spiral Flute Tap |
