Features:

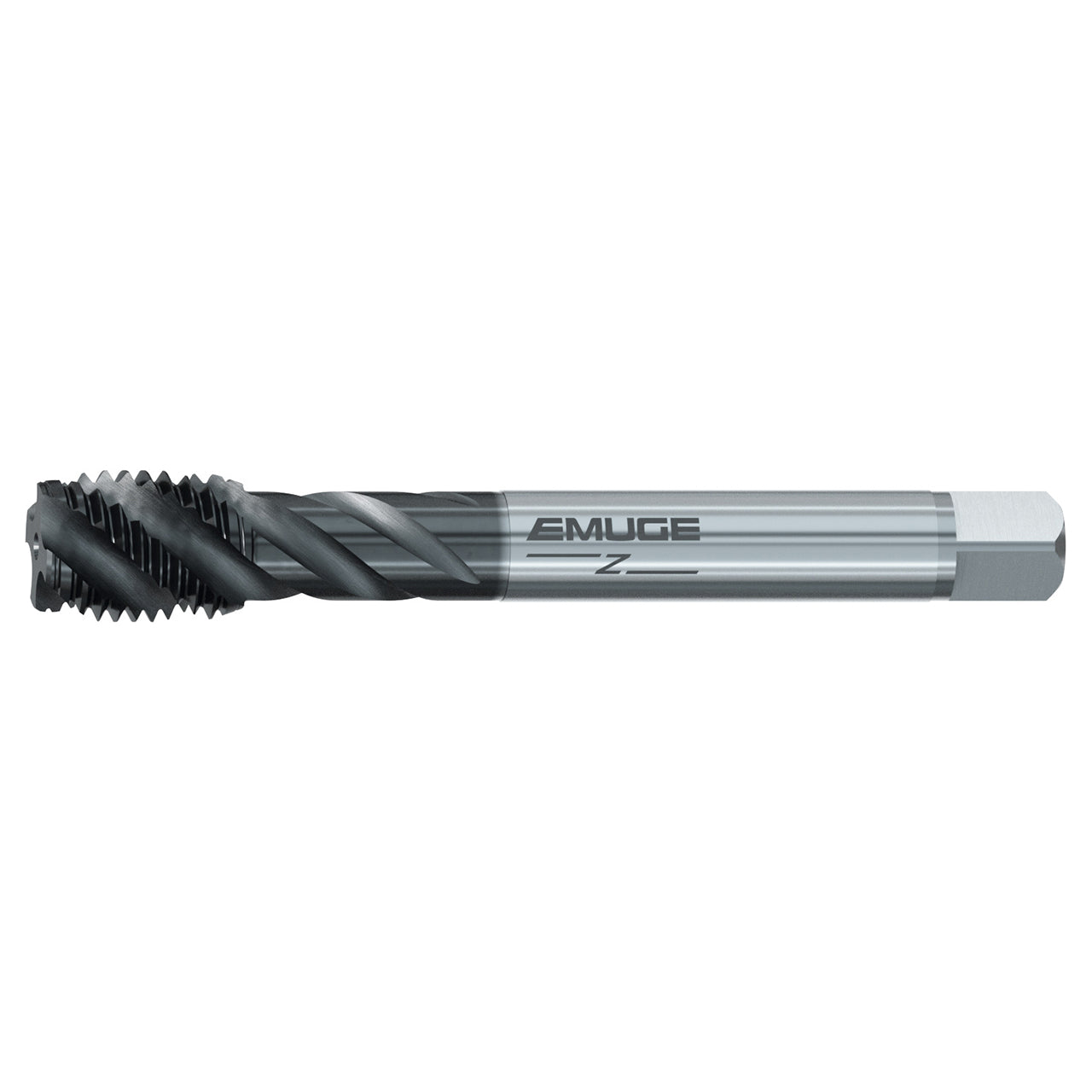

- Enorm VA tap design is typically for blind hole applications in stainless steel and steel alloys
- A fast spiral flute provides good chip removal from blind holes
- GLT-1 coated for heat and wear resistance as well as added lubricity
Product Specifications
| Manufacturer Part Number | C050C420.0120 |
| Thread Size | M20 x 2.5 |
| Thread Diameter Size | M 20 |
| Tapping Depth (mm) | 32.00mm |
| Square Length (mm) | 12.00mm |
| Thread Length (mm) | 32.00mm |
| Overall Length (mm) | 140.00mm |
| Length Group | DIN Length |
| Flute Helix Angle (Degree) | 45 Degree |
| Shank Tolerance | h6 |
| Flute Direction | Right Hand |
| Thread Standard | M |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Class of Fit | 6G |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Material Grade | HSSE |
| Coating | GLT-1 |
| Product Type | Spiral Flute Tap |
