Features:

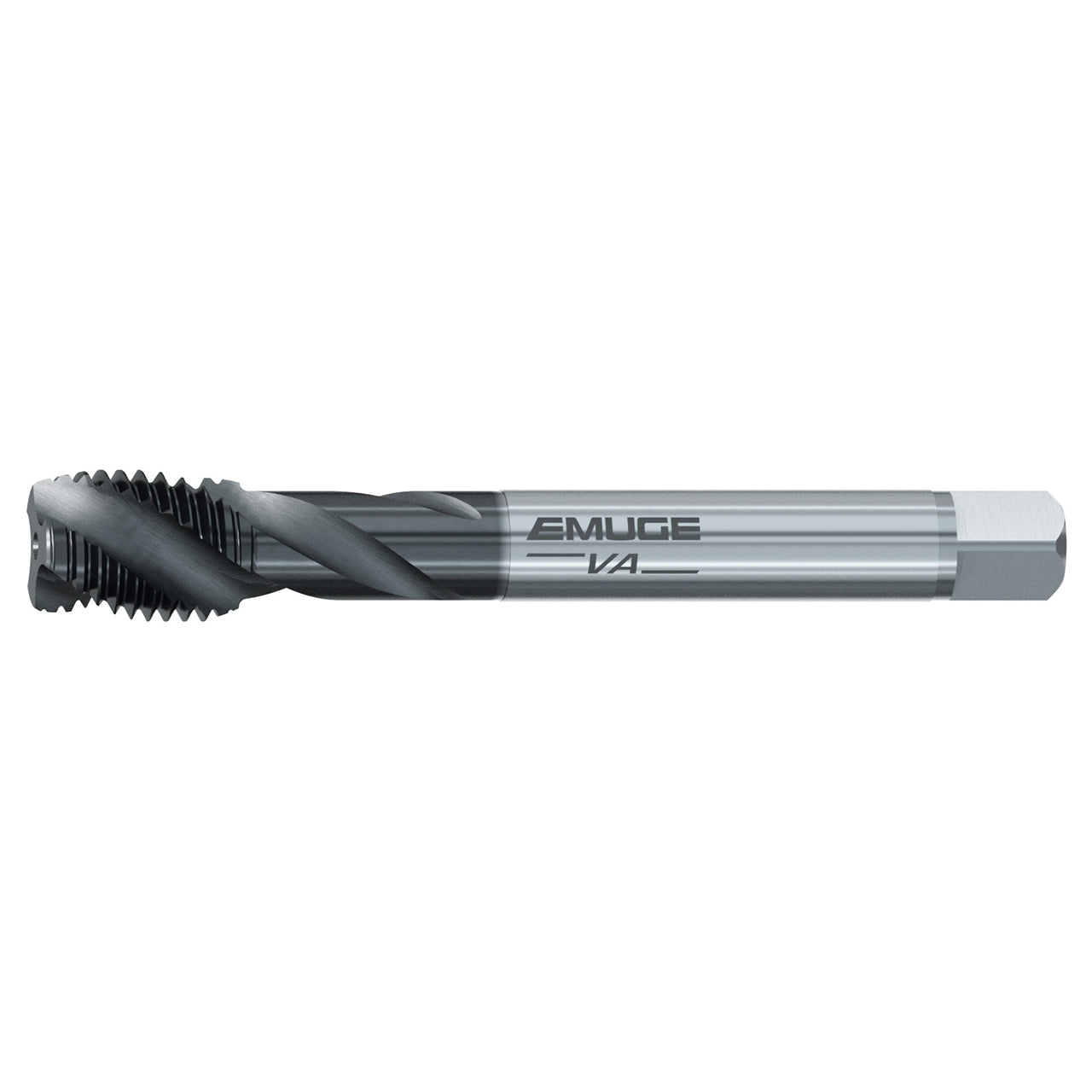

- Enorm VA tap design is typically for blind hole applications in stainless steel and steel alloys
- A fast spiral flute provides good chip removal from blind holes
- GLT-1 coated for heat and wear resistance as well as added lubricity
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C050C300.0112 |
| Thread Size | M 12x1.75 |
| Thread Diameter Size | M 12 |
| Thread Length (mm) | 17.50mm |
| Overall Length (mm) | 110.00mm |
| Length Group | DIN Length |
| Number of Flutes | 4 |
| Flute Helix Angle (Degree) | 35 Degree |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Thread Standard | M |
| Thread Tolerance Class | 6H |
| Tap Chamfer | 2 -3 P |
| Tap Chamfer Form | C |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-1 |
| Product Type | Spiral Flute Tap |
