Features:

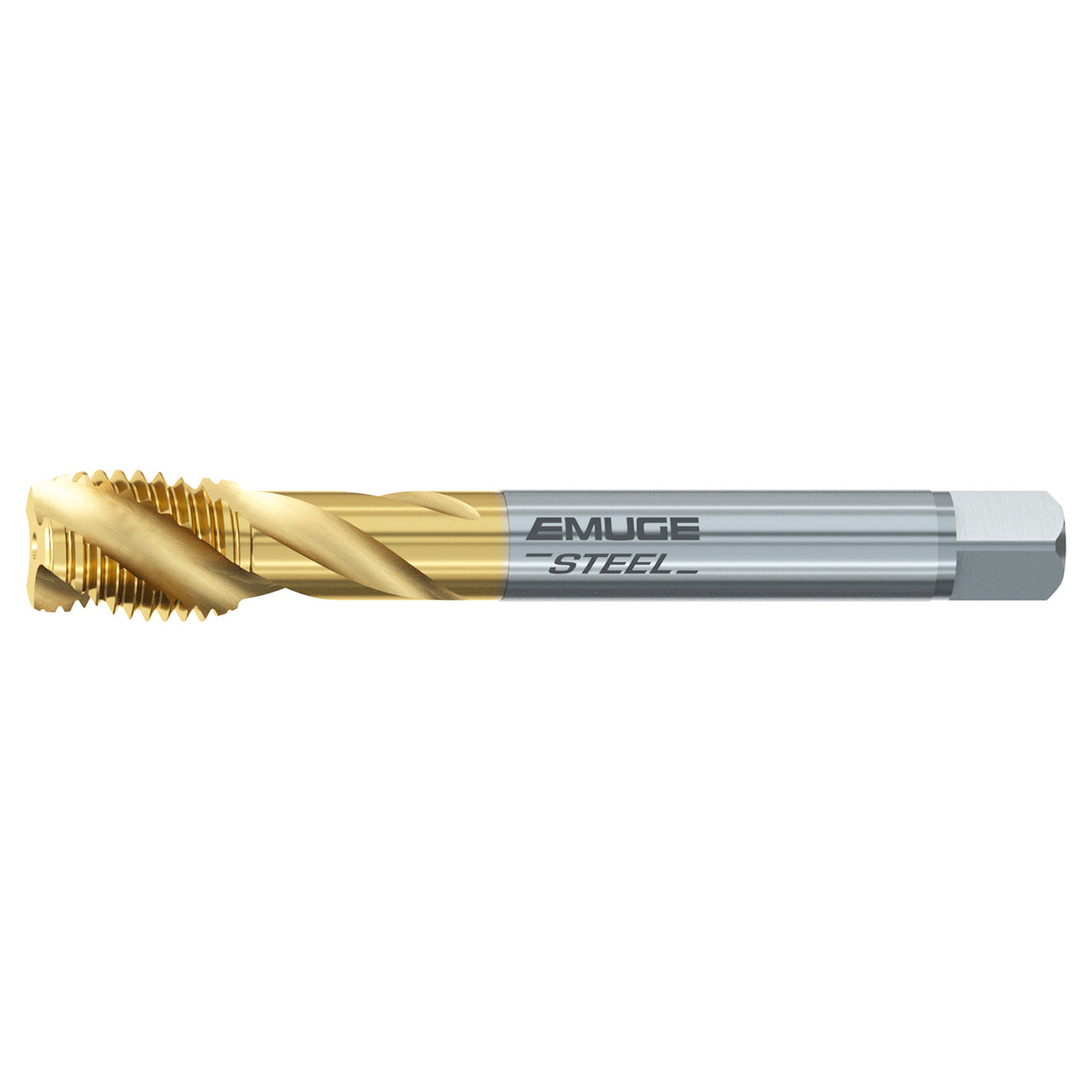

- The Enorm Steel design is typically for blind hole threads in long chipping materials
- A fast spiral flute provides good chip removal from blind holes
- TIN coated for additional heat and wear resistance
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C0501450.0122 |
| Thread Size | M 22x2.5 |
| Thread Diameter Size | M 22 |
| Thread Standard | M |
| Thread Pitch (mm) | 2.50mm |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Left Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Flute Helix Angle (Degree) | 35 Degree |
| Cutting Edge Material | HSSE |
| Coating | TIN |
| Tool Type | Enorm Steel |
| Application | Spiral Flute Taps |
| Product Type | Spiral Flute Tap |
