Features:

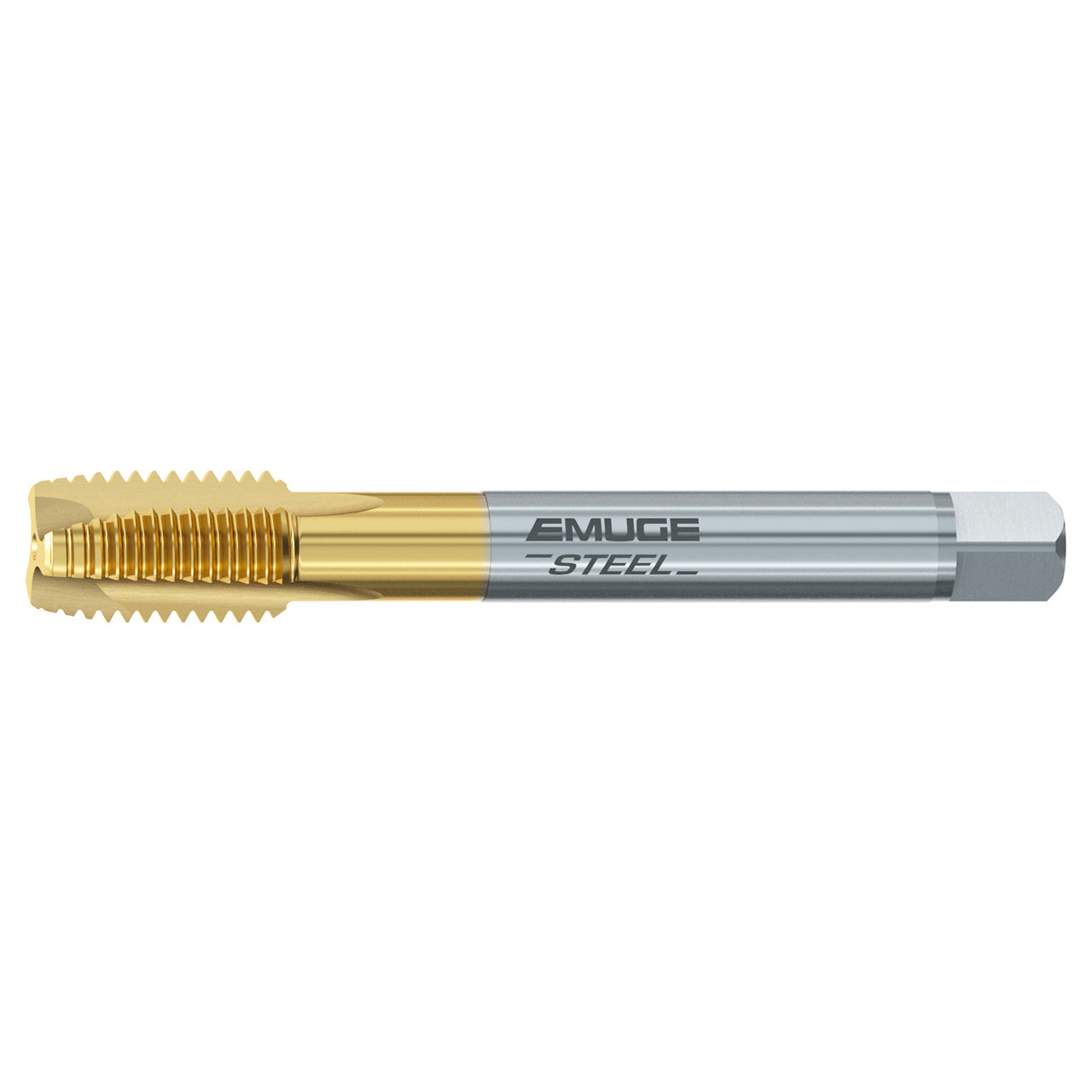

- Rekord B-Steel-L design is typically for through hole applications in long-chipping materials.
- The spiral point ensures optimum chip removal in the feed direction
- TIN coated for additional heat and wear resistance
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C0208410.0120 |
| Thread Size | M 20x2.5 |
| Thread Diameter Size | M 20 |
| Tap Square (mm) | 12.00mm |
| Thread Length (mm) | 32.00mm |
| Overall Length (mm) | 140.00mm |
| Length Group | DIN Length |
| Number of Flutes | 3 |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Thread Standard | M |
| Thread Tolerance Class | 6G |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | B |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Material Grade | HSSE |
| Coating | TiN |
| Product Type | Straight Flute Tap |
