Features:

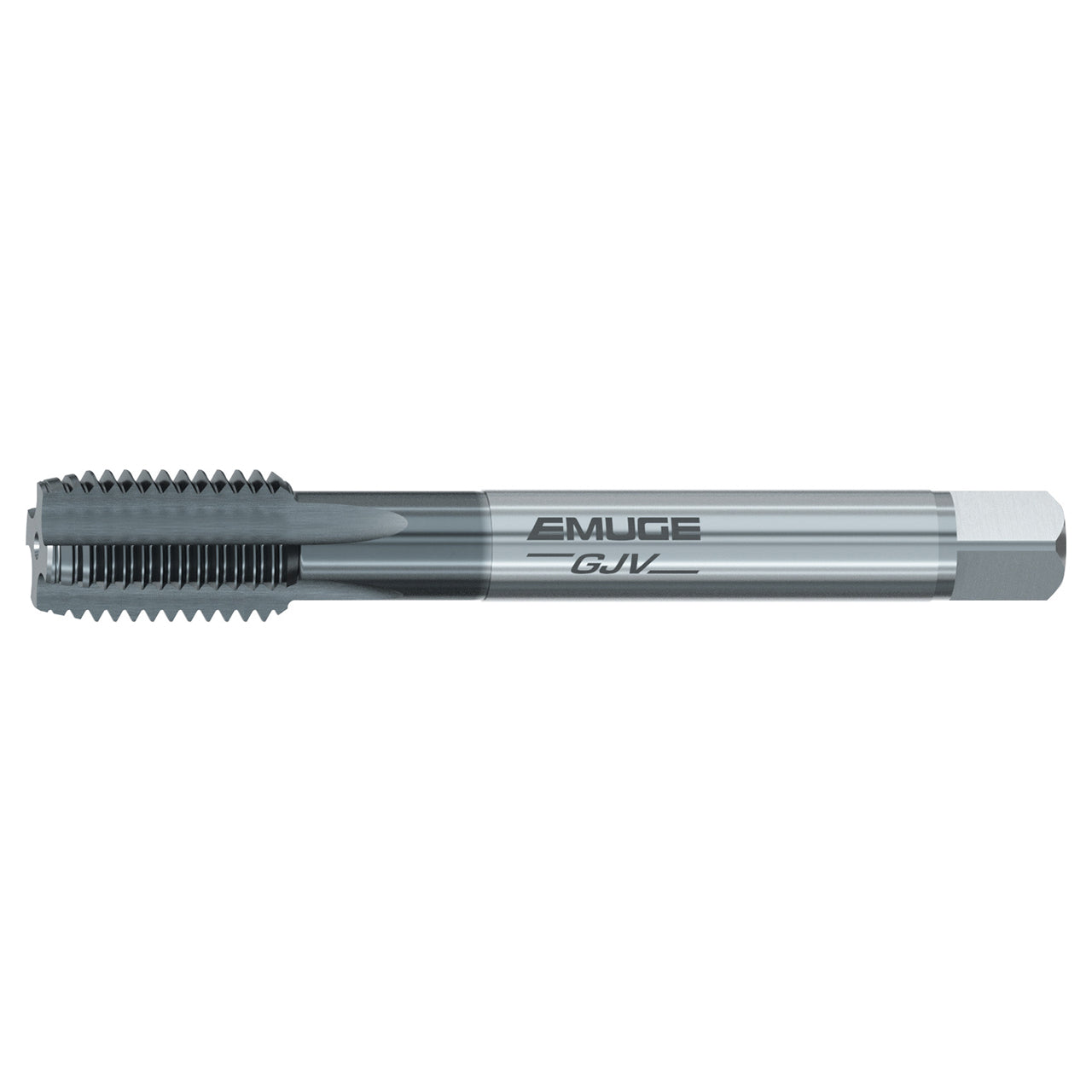

- Rekord A-GJV is a straight flute tap designed for cast iron with vermicular graphite such as CGI & ADI material
- More flutes and adapted geometry for more tool life in these abrasive workpiece materials
- DIN/DIN standard dimensions for overall length and shank size
- HSSE-PM tool base material for longer tool life
Product Specifications
| Manufacturer Part Number | C010R501.0422 |
| Thread Size | M 20x1.5 |
| Thread Diameter Size | M 20 |
| Thread Standard | MF |
| Thread Pitch (mm) | 1.50mm |
| Tap Square (mm) | 12.00mm |
| Thread Length (mm) | 15.00mm |
| Overall Length (mm) | 125.00mm |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Cutting Edge Material | HSSE-PM |
| Coating | TiCN |
| Tool Type | EMUGE GJV |
| Application | Straight Flute Taps |
| Product Type | Straight Flute Tap |
