Features:

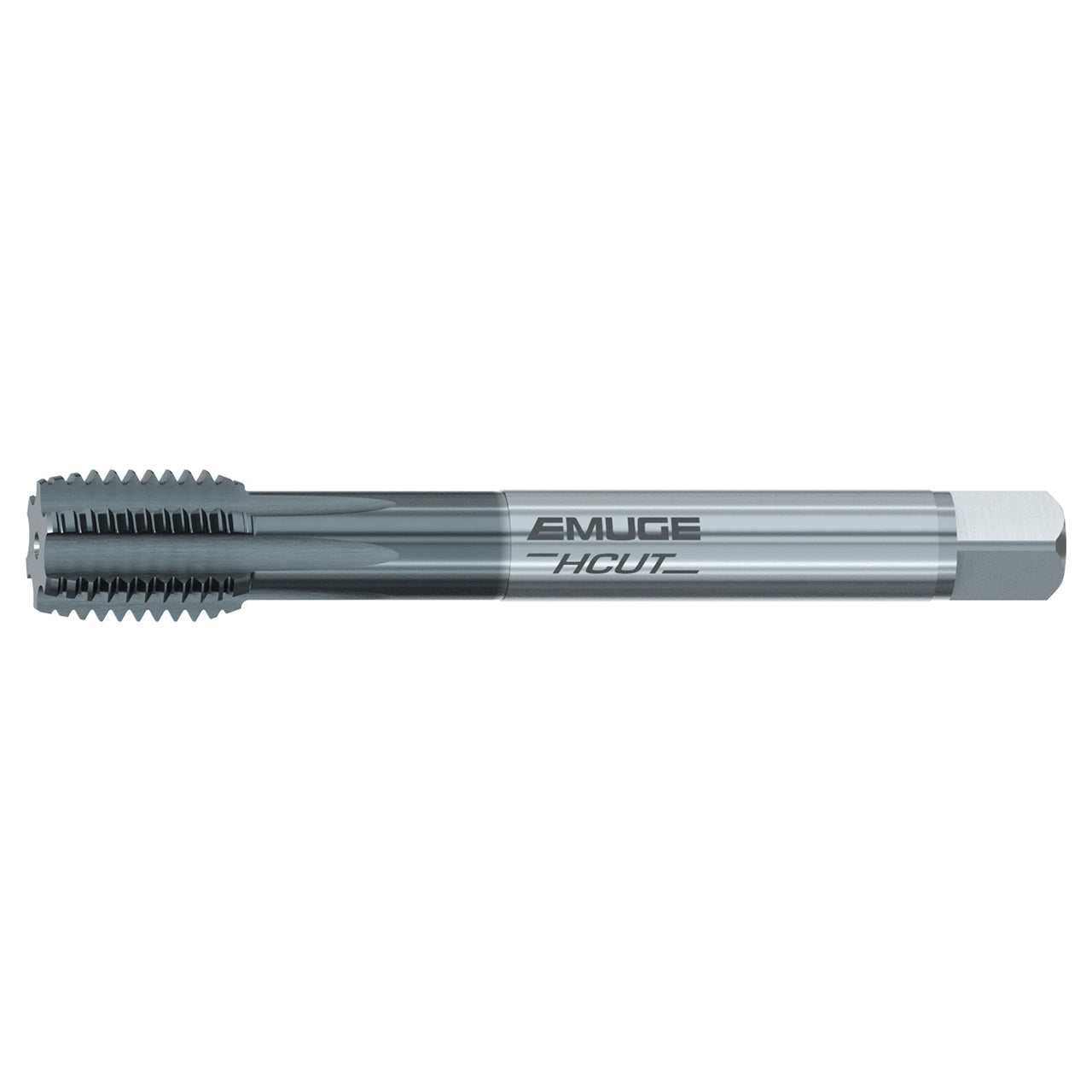

- HSSE-PM tap for hardened steel applications
- Specially adapted flute shape, rake angle and relief angle for long tool life
- TICN coated for additional wear resistance
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C010J901.4036 |
| Thread Size | 1/4"-19 |
| Thread Diameter Size (Inch) | 1/4" |
| Thread Standard | G |
| Thread per Inch (TPI) | 19 TPI |
| Tap Square (mm) | 9.00mm |
| Thread Length (Decimal Inch) | 0.526" |
| Overall Length (mm) | 100.00mm |
| Thread Tolerance Class | X |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 6 |
| Cutting Edge Material | HSSE-PM |
| Coating | TiCN |
| Tool Type | Rekord A-HCUT |
| Application | Pipe Taps |
| Product Type | Interrupted Thread Pipe Tap |
