Features:

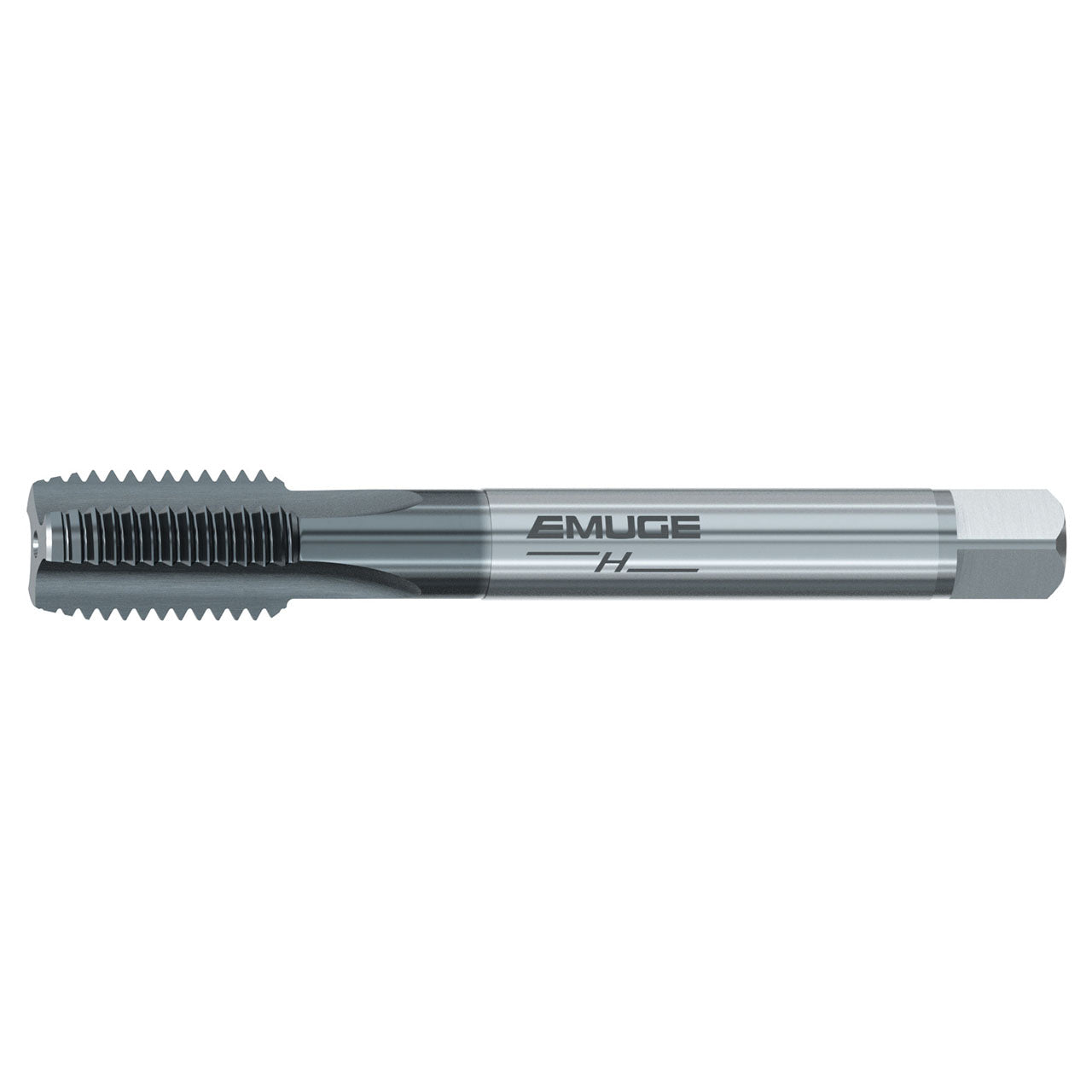

- Rekord A-H is a straight flute design best suited for short chipping, high tensile strength materials (cast iron & hardened steels).
- For blind and through hole applications
- TICN coated for additional wear resistance
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C0109101.4040 |
| Thread Size | 3/4"-14 |
| Thread Diameter Size | 3/4" |
| Thread Per Inch (TPI) | 14 TPI |
| Tap Square (mm) | 16.00mm |
| Thread Length (mm) | 28.00mm |
| Length Group | DIN Length |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | G |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 2 -3 P |
| Tap Chamfer Form | C |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | TICN |
| Product Type | Straight Flute Tap |
