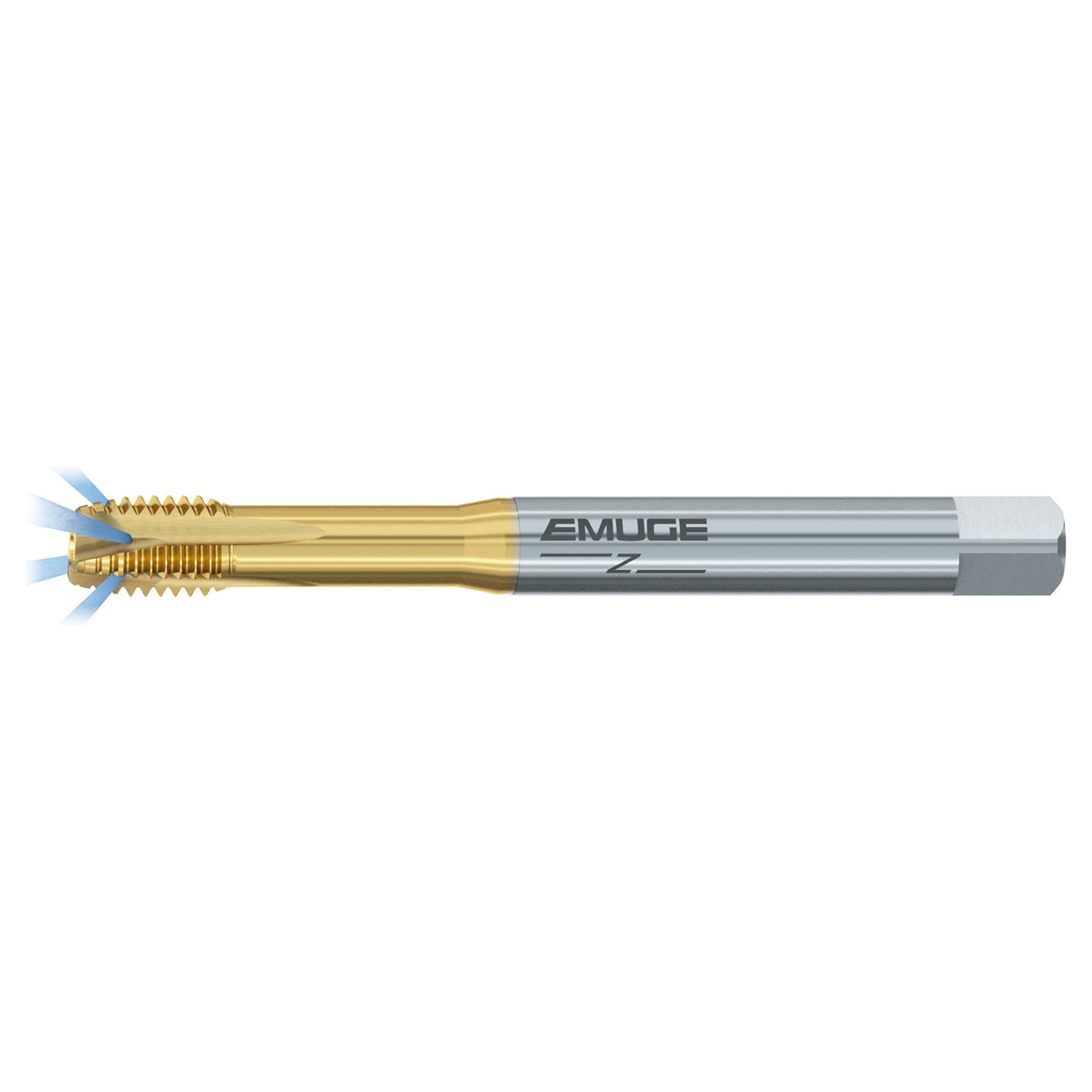

Features:
- Speed taps are able to operate at higher cutting speeds than conventional designs Rekord B style taps have a spiral point grind that pushes chips forward and are suitable for through hole applications
- Radial coolant fed to maximize chip evacuation and improve thread quality
- Ideal for use with EMUGE Speedsynchro Modular
- Longer tool life and more consistent thread quality
Product Specifications
| Manufacturer Part Number | BW208F01.5007 |
| Thread Size | #10-24 |
| Thread Diameter Size | #10 |
| Thread Standard | UNC |
| Thread per Inch (TPI) | 24 TPI |
| Tap Square (Decimal Inch) | 0.152" |
| Thread Length (Decimal Inch) | 0.417" |
| Overall Length (Decimal Inch) | 2.756" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.194" |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 4-5 P |
| Tap Chamfer Form | B |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Radial |
| Number of Flute | 3 |
| Cutting Edge Material | HSSE-PM |
| Coating | TIN-70 |
| Tool Type | Rekord B-Speed |
| Application | Spiral Point Taps |
| Product Type | Spiral Point Tap |
