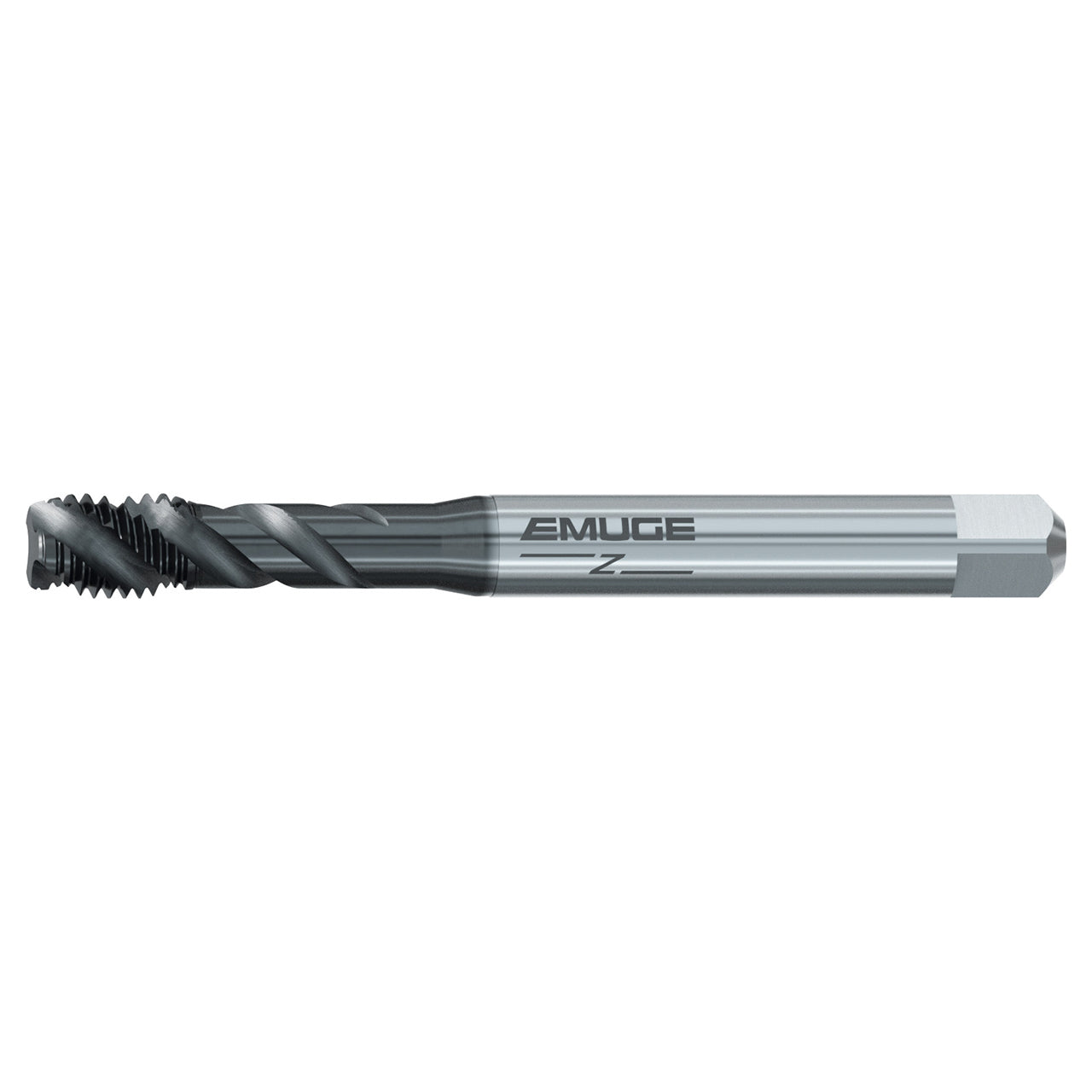

Features:
- The Enorm Z/E design is typically for blind hole threads in long chipping materials
- The fast spiral flute provides good chip removal from blind holes
- GLT-1 coated for heat and wear resistance as well as added lubricity
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU51C400.5657 |
| Thread Size | LK 5 -40 |
| Thread Diameter Size | LK 5 |
| Thread Standard | LK-UNC |
| Thread per Inch (TPI) | 40 TPI |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.141" |
| Thread Tolerance Class | BT |
| Tap Chamfer | 1.5-2 P |
| Tap Chamfer Form | E |
| Class of Fit | LK |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 2 |
| Flute Helix Angle (Degree) | 45 Degree |
| Cutting Edge Material | HSSE |
| Coating | GLT-1 |
| Tool Type | Enorm Z/E |
| Application | Spiral Flute Taps |
| Product Type | Spiral Flute Tap |
