Features:

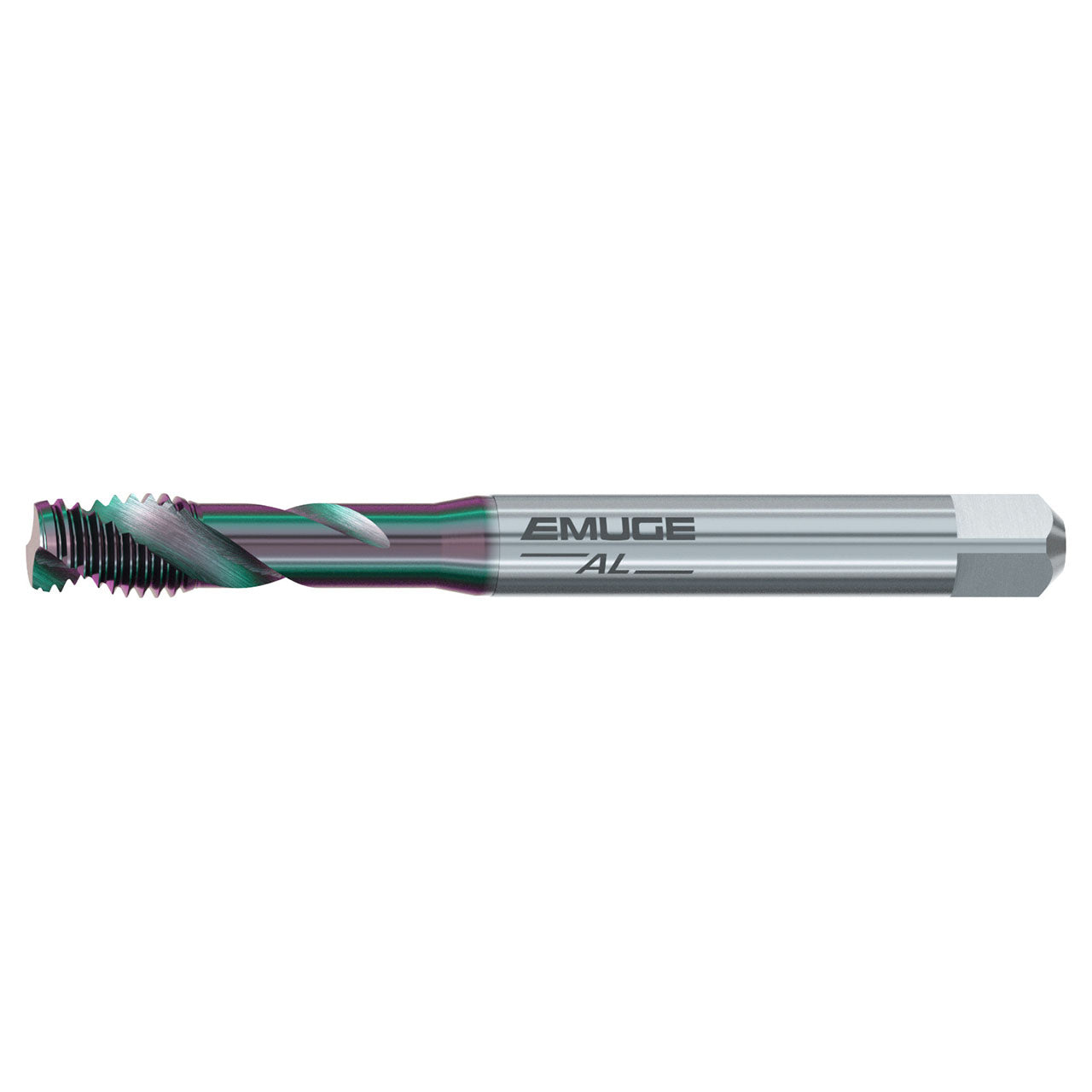

- Rekord B-AL tap is designed for wrought aluminum materials.
- The spiral point ensures optimum chip removal in the feed direction
- GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU513G10.5639 |
| Thread Size | 1/4"-28 |
| Thread Diameter Size | 1/4" |
| Thread Per Inch (TPI) | 28 TPI |
| Tap Square (Decimal Inch) | 0.442" |
| Thread Length (Decimal Inch) | 1.181" |
| Overall Length (Decimal Inch) | 3.543" |
| Length Group | DIN Length |
| Number of Flutes | 2 |
| Flute Helix Angle (Degree) | 45 Degree |
| Dimensional Standard | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Thread Standard | STI-UNF |
| Thread Tolerance Class | 3B |
| Tap Chamfer | 1.5 -2 P |
| Tap Chamfer Form | B |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-104 |
| Product Type | Spiral Flute Tap |
