Features:

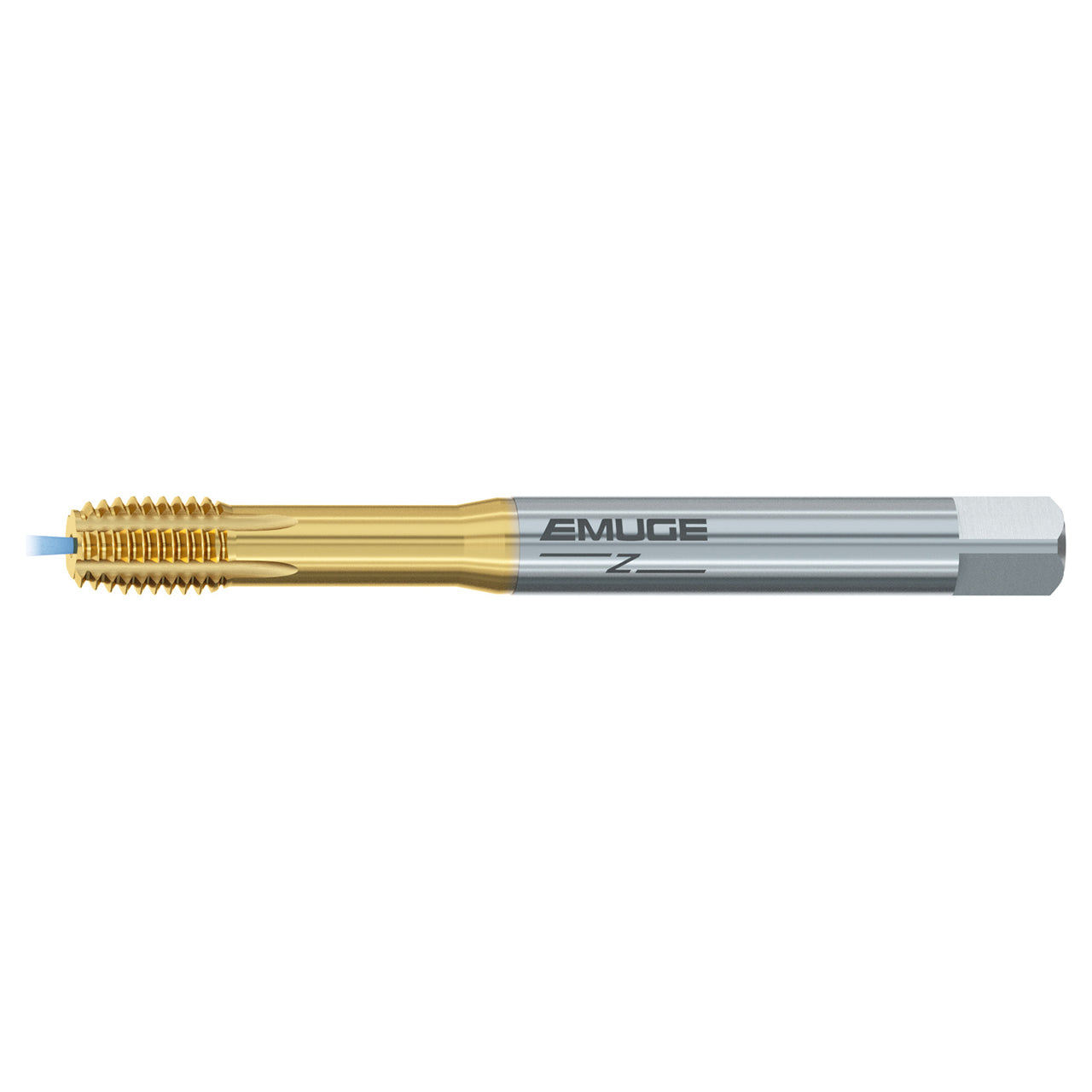

- The InnoForm Z/E roll form bottoming tap is designed for low field strength materials
- Axial coolant fed to maximize chip evacuation and improve thread quality
- TIN-80 coated for heat and wear resistance
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU44Z700.5010 |
| Thread Size | 5/16"-18" |
| Thread Diameter Size (Inch) | 5/16" |
| Thread Standard | UNC |
| Thread per Inch (TPI) | 18 TPI |
| Tap Square (Decimal Inch) | 0.238" |
| Thread Length (Decimal Inch) | 0.556" |
| Overall Length (Decimal Inch) | 3.543" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.318" |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 1.5-2 P |
| Tap Chamfer Form | E |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Cutting Edge Material | HSSE-PM |
| Coating | TIN-80 |
| Tool Type | EMUGE Z |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
