Features:

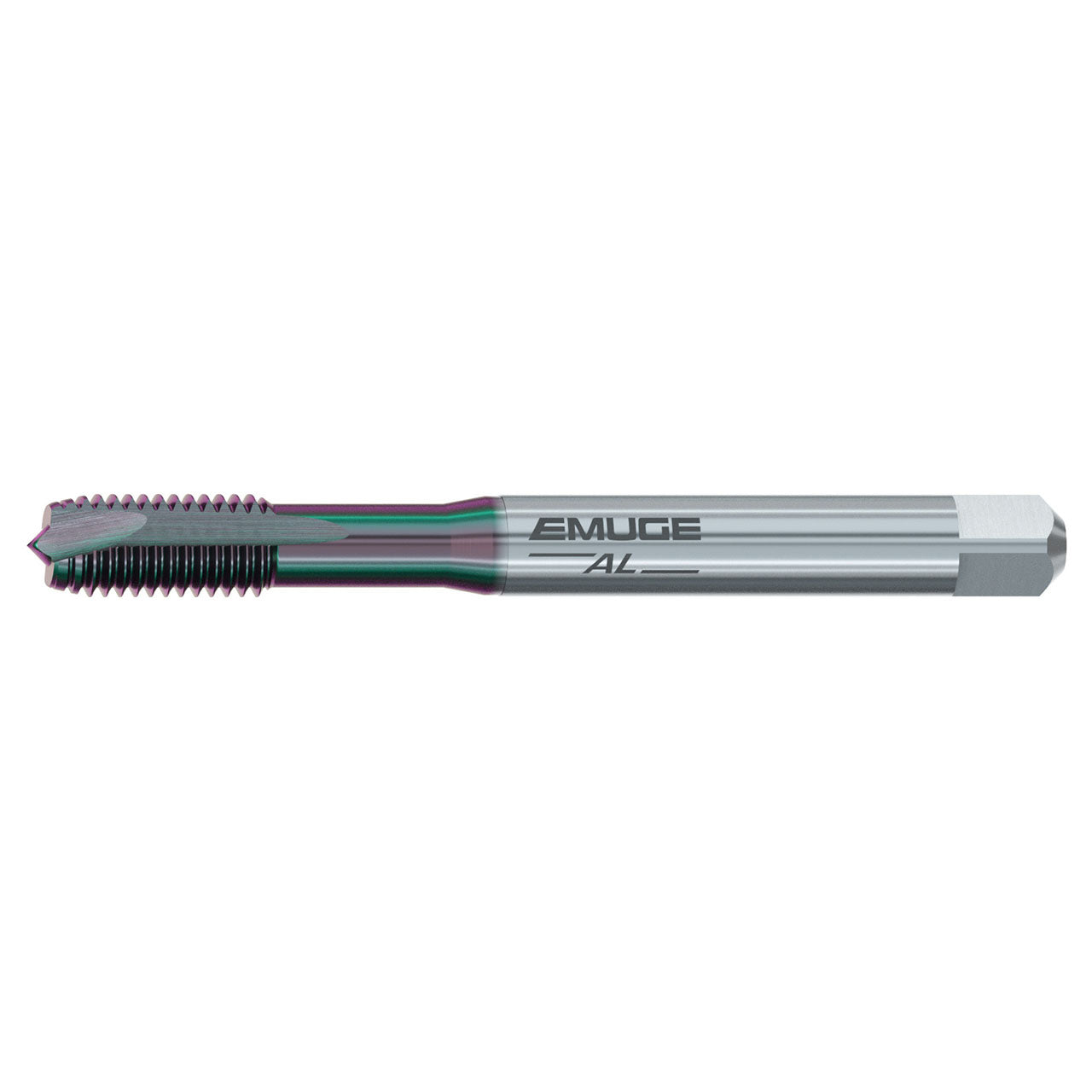

- The Enorm AL design is typically for blind hole threads in long chipping materials such as wrought aluminum alloys.
- The fast spiral flute (45 Degree) provides good chip removal from blind holes
- GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU203G10.5635 |
| Thread Size | #6-40 |
| Thread Diameter Size | #6 |
| Thread Per Inch (TPI) | 40 TPI |
| Thread Length (Decimal Inch) | 0.250" |
| Overall Length (Decimal Inch) | 2.480" |
| Length Group | DIN Length |
| Number of Flutes | 2 |
| Dimensional Standard | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | STI-UNF |
| Thread Tolerance Class | 3B |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | C |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-104 |
| Product Type | Spiral Point STI Tap |
